KLKD030.T
Fuse, Industrial / Power, POWR-GARD KLKD, 30 A, 600 V, 600 V, 10mm x 38mm, 13/32" x 1-1/2"

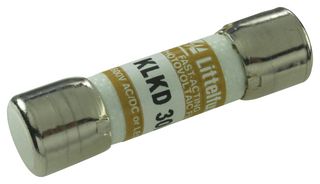

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part NoKLKD030.T
Order Code1818414
Product RangePOWR-GARD KLKD
Your Part Number
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 8 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $107.880 ($124.062) |
| 2+ | $94.390 ($108.5485) |
| 3+ | $78.210 ($89.9415) |
| 5+ | $70.120 ($80.638) |
| 10+ | $64.720 ($74.428) |
| 20+ | $60.400 ($69.460) |
Price for:Each
Minimum: 1
Multiple: 1
$107.88 ($124.06 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part NoKLKD030.T
Order Code1818414
Product RangePOWR-GARD KLKD
Technical Datasheet
Product RangePOWR-GARD KLKD
Fuse Current30A
Voltage Rating VAC600V
Voltage Rating VDC600V
Fuse Size Metric10mm x 38mm
Fuse Size Imperial13/32" x 1-1/2"
Blow CharacteristicFast Acting
SVHCNo SVHC (17-Dec-2014)
Product Overview
The POWR-GARD KLKD series Fast Acting Fuse with a high DC voltage rating available in standard and board-mount configurations. It is used in solar combiner boxes and in circuits with DC fault currents up to 50000A.
- 50000A Interrupting rating
- Available in ferrule or PCB mount options
- 1-5 A meets UL1741 GFDI requirements
- Designed to UL and IEC photovoltaic specifications
Applications
Safety, Consumer Electronics, Power Management, Computers & Computer Peripherals
Technical Specifications
Product Range
POWR-GARD KLKD
Voltage Rating VAC
600V
Fuse Size Metric
10mm x 38mm
Blow Characteristic
Fast Acting
Fuse Current
30A
Voltage Rating VDC
600V
Fuse Size Imperial
13/32" x 1-1/2"
SVHC
No SVHC (17-Dec-2014)
Technical Docs (2)
Alternatives for KLKD030.T
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:85361050
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Dec-2014)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.009072
