VUB120-16NOX

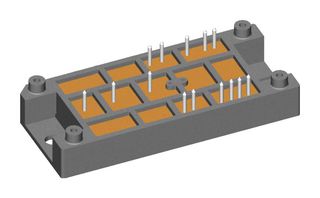

Diode Module, Rectifier, 1.6 kV, 180 A, 1.55 V, Bridge, V2, 14 Pins
Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerLITTELFUSE
Manufacturer Part NoVUB120-16NOX
Order Code3930559
Technical Datasheet
Repetitive Peak Reverse Voltage1.6kV
Average Forward Current180A
Forward Voltage Max1.55V
Diode Module ConfigurationBridge
Diode Case StyleV2
No. of Pins14Pins
Operating Temperature Max150°C
Forward Surge Current1.1kA
Diode MountingPanel
Product Range-
SVHCTo Be Advised
Product Overview
3 phase rectifier bridge + brake unit module suitable for use in 3 phase rectifier with brake unit for drive inverters.
- Package with DCB ceramic base plate
- Improved temperature and power cycling
- Planar passivated chips
- Very low forward voltage drop
- Very low leakage current
- Rugged X2PT design results in: very low gate charge, low EMI, short circuit rated for 10µsec
- Thin wafer technology combined with X2PT design
