LM071
BLUETOOTH MODULE, BC04, CLASS 2, EDR

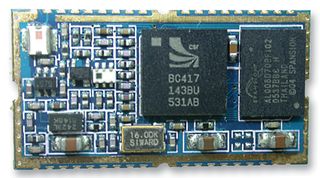

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLM TECHNOLOGIES
Manufacturer Part NoLM071
Order Code1675411
Product RangeTUK SGACK902S Keystone Coupler
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerLM TECHNOLOGIES
Manufacturer Part NoLM071
Order Code1675411
Product RangeTUK SGACK902S Keystone Coupler
Technical Datasheet
Bluetooth VersionBluetooth 2.0 + EDR
Supply Voltage Min3V
Supply Voltage Max3.6V
Signal Range Max-
Data Rate3Mbps
Bluetooth ClassClass 1
Receive Sensitivity-83dBm
Operating Temperature Min-
Operating Temperature Max-
Product RangeTUK SGACK902S Keystone Coupler
SVHCNo SVHC (17-Dec-2015)
Alternatives for LM071
1 Product Found
Product Overview
LM-071 is an class 2 BC04 Bluetooth module. This module is CSR BC04 class 2 module with no antenna, an operating voltage range is from 3.0V to 3.6V and an operating data range of 20 - 40m. This module is provided with Bluetooth v2.0+EDR compliant SPP firmware and can be configured using our set of AT commands sent over UART.
- The module is a Max 4dBm (Class2) module
- Bluetooth standard v2.0 + EDR specification
- Low current consumption operating on Hold, Sniff, Park, Deep Sleep Mode
- Ideal for embedded systems, Low power
- Support for up to 7 ACL links and 3 SCO links (HCI mode firmware)
- Interface: USB, UART & PCM (for VOICE CODEC)
- SPP firmware available by default. Also offered HID firmware
- Support for 802.11 Co-existence
- No Host Stack required
- External Antenna
Applications
Wireless, Portable Devices, Industrial, Consumer Electronics
Technical Specifications
Bluetooth Version
Bluetooth 2.0 + EDR
Supply Voltage Max
3.6V
Data Rate
3Mbps
Receive Sensitivity
-83dBm
Operating Temperature Max
-
SVHC
No SVHC (17-Dec-2015)
Supply Voltage Min
3V
Signal Range Max
-
Bluetooth Class
Class 1
Operating Temperature Min
-
Product Range
TUK SGACK902S Keystone Coupler
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:84719000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Dec-2015)
