LM072
Class 1 BC04 Bluetooth® Module Supporting up to 7 ACL links and 3 SCO links

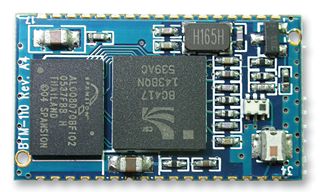

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLM TECHNOLOGIES
Manufacturer Part NoLM072
Order Code1675413
Product RangeTUK SGACK902S Keystone Coupler
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerLM TECHNOLOGIES
Manufacturer Part NoLM072
Order Code1675413
Product RangeTUK SGACK902S Keystone Coupler
Technical Datasheet
Bluetooth VersionBluetooth 2.0 + EDR
Supply Voltage Min3V
Supply Voltage Max3.6V
Signal Range Max-
Data Rate3Mbps
Bluetooth ClassClass 1
Receive Sensitivity-88dBm
Operating Temperature Min-20°C
Operating Temperature Max75°C
Product RangeTUK SGACK902S Keystone Coupler
SVHCNo SVHC (17-Dec-2015)
Product Overview
LM072 is an Bluetooth module for long range 100m class 1. This module is CSR BC04 class 1 module with no antenna. Operating voltage range is from 3.0V to 3.6V and an operating data range of up to 100m. This module is provided with Bluetooth v2.0+EDR compliant SPP firmware and can be configured using our set of AT commands sent over UART.
- Used in LM Technologies Ltd Bluetooth Serial Adapters
- Bluetooth v2.0 + EDR compliant backward compatible with Bluetooth v1.2/1.1 specification
- Full Bluetooth Data rate up to 3Mbps
- Class 1 Radio with 100m range in open space
- AT Command Set provided for module configuration
- Tried and tested module as LM Technologies Ltd uses this module in our own Serial Adapters
- Ideal for embedded systems
- Excellent solution to integrate wireless connectivity to a product for long range connectivity
- Low power, Robust design, No host stack required
- Support for encryption data and authentication
Applications
Wireless, Portable Devices, Industrial, Consumer Electronics
Technical Specifications
Bluetooth Version
Bluetooth 2.0 + EDR
Supply Voltage Max
3.6V
Data Rate
3Mbps
Receive Sensitivity
-88dBm
Operating Temperature Max
75°C
SVHC
No SVHC (17-Dec-2015)
Supply Voltage Min
3V
Signal Range Max
-
Bluetooth Class
Class 1
Operating Temperature Min
-20°C
Product Range
TUK SGACK902S Keystone Coupler
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85176990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Dec-2015)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.01
