Print Page
11120

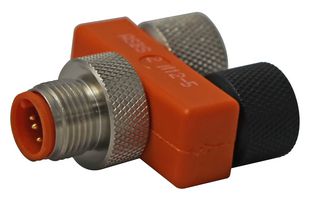

T Connector, ASBS 2, 5 Pole, M12 Receptacles, 4 Amp Max, 60V Max, Gold Plated CuZn Contact, IP67
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | LUMBERG AUTOMATION |
|---|---|
| Manufacturer Part No | 11120Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 1645252 |
| Your Part Number | |
| Technical Datasheet |
197 total stock globally
Need more?
197 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $67.590 ($77.7285) |
| 10+ | $61.900 ($71.185) |
| 25+ | $60.670 ($69.7705) |
| 100+ | $59.440 ($68.356) |
| 250+ | $58.190 ($66.9185) |
| 500+ | $56.960 ($65.504) |
Price for:Each
Minimum: 1
Multiple: 1
$67.59 ($77.73 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LUMBERG AUTOMATION |
|---|---|
| Manufacturer Part No | 11120Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 1645252 |
| Technical Datasheet | |
| Product Range | - |
| Gender | Receptacle(View Associated Connectors) |
| Contact Termination Type | Screw |
| No. of Contacts | 5 Contact |
| Connector Mounting | Panel Mount |
| Contact Plating | Gold Plated Contacts |
| Contact Material | Copper, Zinc |
| SVHC | Lead (27-Jun-2018) |
Product Overview
The 11120 is a Splitter/T-connector with two M12 female connectors and self-locking threaded joint. It has gold-plated CuZn contact and a glass-filled PA self-extinguishing insert.
- Nickel-plated CuZn receptacle shell and knurled screw
- FKM O-ring
- ≤5mΩ Contact resistance
- <gt/>10⁹Ω Insulation resistance
- IP67 Protection
Applications
Industrial
Technical Specifications
| Product Range | - |
|---|---|
| Contact Termination Type | Screw |
| Connector Mounting | Panel Mount |
| Contact Material | Copper, Zinc |
| Gender | Receptacle |
|---|---|
| No. of Contacts | 5 Contact |
| Contact Plating | Gold Plated Contacts |
| SVHC | Lead (27-Jun-2018) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Czech Republic Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (27-Jun-2018) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0307 |
