LCM-S01602DSF/A
Alphanumeric LCD, InfoVue, 16 x 2, Black on Yellow / Green, 5V, Parallel, English, Japanese

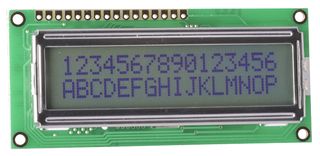

Image is for illustrative purposes only. Please refer to product description.
No Longer Stocked
Product Information
ManufacturerLUMEX
Manufacturer Part NoLCM-S01602DSF/A
Order Code2062132
Technical Datasheet
Character Count x Line16 x 2
Display AppearanceBlack on Yellow / Green
Logic Voltage5V
Interface TypeParallel
Font SetEnglish, Japanese
Display ModeTransflective
LCD Display TypeSTN
Module Size80mm x 36mm
Display ConstructionCOB
Backlighting ColourYellow / Green
Product Range-
Product Overview
The LCM-S01602DSF/A is an Alphanumeric LCD Display with STN fluid. It features transflective with LED backlight polarizer, 5.56mm character height, 16 x 2 characters per line and 1/16 duty.
- Reliable user-interface display
- Low power consumption
- Very long operational life
- 0 to 50°C Operating temperature range
Applications
Communications & Networking, Industrial, Safety, Medical, Security, Test & Measurement
Technical Specifications
Character Count x Line
16 x 2
Logic Voltage
5V
Font Set
English, Japanese
LCD Display Type
STN
Display Construction
COB
Product Range
-
Display Appearance
Black on Yellow / Green
Interface Type
Parallel
Display Mode
Transflective
Module Size
80mm x 36mm
Backlighting Colour
Yellow / Green
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85312020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.032
