1270.1001

Light Pipe, Double Line, 23.6 mm, 2 Pipes, Circular, Panel, Transparent

1270.1001 - Light Pipe, Double Line, 23.6 mm, 2 Pipes, Circular, Panel, Transparent
1270.1001 - Light Pipe, Double Line, 23.6 mm, 2 Pipes, Circular, Panel, Transparent
1270.1001 - Light Pipe, Double Line, 23.6 mm, 2 Pipes, Circular, Panel, Transparent

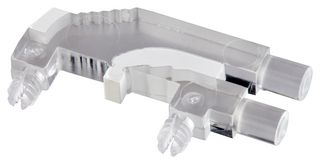

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MENTOR MENTOR
Manufacturer Part No:
1270.1001
Order Code:
2300551
Technical Datasheet:
1270.1001   Datasheet
See all Technical Docs

Product Overview

The 1270.1001 is a 3mm 2-fold Horizontal PCB Mount Light Guide with white UL94 PBT diaphragm. The double line light guide system can be used as an FEL substitute in a 5.08mm pitch and is held in place on the printed board via press-in lugs. The system is provided with a screen to prevent irradiation, as also mixed colours can be used. The light guides are used in conjunction with SMD LEDs. The light is guided in the form of a 3mm light guide parallel to the printed board on the front panel. Horizontal PCB mounted light guides from MENTOR are used in electronic products that call for light to be emitted from a panel that is positioned at right angles to the circuit board. They are fitted to the circuit board by using push-fit lugs.
  • L1 to L12 Recommended LED
  • Form a key function in the human interface
  • Fitted to the circuit board by using push-fit lugs
  • ESD-resistant to discharges against the front panel

Applications

Industrial, Lighting

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
23.6mm

:
2Pipes

:
Circular

:
Panel

:
Transparent

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Best Seller

675 total stock globally Need more?

375 available for 4 - 5 business days delivery
300 available for 5 - 6 business days delivery

$3.45 ( $3.97  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 10 Minimum: 10
