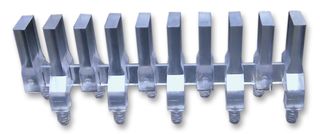

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MENTOR |
|---|---|
| Manufacturer Part No | 1274.1010Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3245214 |
| Your Part Number | |
| Technical Datasheet |
1,063 total stock globally
Need more?
1,063 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $2.310 ($2.6565) |
| 10+ | $1.630 ($1.8745) |
| 25+ | $1.490 ($1.7135) |
| 50+ | $1.380 ($1.587) |
| 100+ | $1.270 ($1.4605) |
| 500+ | $1.120 ($1.288) |
Price for:Each
Minimum: 1
Multiple: 1
$2.31 ($2.66 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MENTOR |
|---|---|
| Manufacturer Part No | 1274.1010Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3245214 |
| Technical Datasheet | |
| Length | 15mm |
| No. of Light Pipes | 10Pipes |
| Light Pipe Shape | Rectangular |
| Mounting Orientation | Vertical |
| Light Pipe Mounting | Panel |
| Light Pipe Colour | Transparent |
| Product Range | - |
Product Overview
The 1274.1010 is a multiple display Light Guide system for upright mounting recommended for use with L1 to L12 LEDs. It provides light in form of a 2x5mm LED on the front panel. The light guide is held in place on the printed board via press-in lugs. The light guide is used in conjunction with SMD LEDs.
- UL94 Flammability rating
- -40 to 85°C Ambient temperature range
- <lt/>12kV ESD protection
Applications
Industrial, Lighting
Technical Specifications
| Length | 15mm |
|---|---|
| Light Pipe Shape | Rectangular |
| Light Pipe Mounting | Panel |
| Product Range | - |
| No. of Light Pipes | 10Pipes |
|---|---|
| Mounting Orientation | Vertical |
| Light Pipe Colour | Transparent |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90019000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002631 |
