| Manufacturer | MENTOR |
|---|---|
| Manufacturer Part No | 1280.1020Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2300589 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $3.880 ($4.462) |
| 10+ | $2.750 ($3.1625) |
| 25+ | $2.500 ($2.875) |
| 50+ | $2.310 ($2.6565) |
| 100+ | $2.120 ($2.438) |
| 500+ | $1.890 ($2.1735) |
Product Information
| Manufacturer | MENTOR |
|---|---|
| Manufacturer Part No | 1280.1020Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2300589 |
| Technical Datasheet | |
| Length | 14mm |
| No. of Light Pipes | 2Pipes |
| Light Pipe Shape | Circular |
| Light Pipe Mounting | PC Board |
| Light Pipe Colour | Transparent |
| Product Range | - |
Product Overview

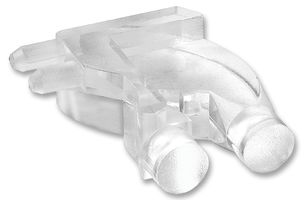

The 1280.1020 is a 2-fold Horizontal PCB Mount Light Guide can be used as a FEL substitute and so arranged end to end to similar or other FEL-components. The light guide is held in place on the printed board via two press-in lugs. The light guide take place in conjunction with SMD LEDs of type Mini TOPLED. It is used in electronic products that call for light to be emitted from a panel that is positioned at right angles to the circuit board. They are fitted to the circuit board by using push-fit lugs. Light guides form a key function in the human interface with a product, so their appearance and optical quality have a huge influence on aesthetics and overall perceptions. The options of horizontal light guides with square, round or rectangular displays provide design engineers with ultimate flexibility.
- P1 to P7 Recommended LED
- <lt/>5kV ESD protection
Applications
Industrial, Lighting
Technical Specifications
| Length | 14mm |
|---|---|
| Light Pipe Shape | Circular |
| Light Pipe Colour | Transparent |
| No. of Light Pipes | 2Pipes |
|---|---|
| Light Pipe Mounting | PC Board |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90019000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000454 |
