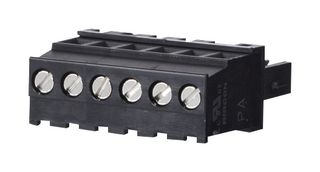

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | METZ CONNECT |
|---|---|
| Manufacturer Part No | 31314105Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2774470 |
| Your Part Number | |
| Technical Datasheet |
281 total stock globally
Need more?
281 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $4.940 ($5.681) |
| 10+ | $4.420 ($5.083) |
| 100+ | $4.340 ($4.991) |
| 250+ | $4.150 ($4.7725) |
| 500+ | $4.030 ($4.6345) |
| 1000+ | $3.950 ($4.5425) |
Price for:Each
Minimum: 1
Multiple: 1
$4.94 ($5.68 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | METZ CONNECT |
|---|---|
| Manufacturer Part No | 31314105Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2774470 |
| Technical Datasheet | |
| Pitch Spacing | 5mm |
| No. of Positions | 5Ways |
| Wire Size (AWG) | 28AWG to 12AWG |
| Wire Size AWG Min | 28AWG |
| Wire Size AWG Max | 12AWG |
| Conductor Area CSA | 2.5mm² |
| Wire Connection Method | Screw |
| Rated Current | 12A |
| Rated Voltage | 300V |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
The 31314105 from Metz Connect is RP035xxHBLD (Type 314) series screw type pluggable terminal block with 5 poles. The 5mm pitch, 90° pluggable terminal block is fastened to the PCB via matching multi-pin connectors.
- Lift system fittable without loss of poles
- Wire entry codeable side perpendicular to plug direction
- Insulating material is black colour PA66 (class CTI 600), contact material is CuSn
- Rated wiring solid wire range from 0.08mm² to 2.5mm²
- Rated wiring stranded wire range from 0.08mm² to 2.5mm²
- Clearance and creepage distances is 3.2mm
- IP 20 protection category according to IEC 60529
- Minimum insulation strip length is 8mm
- Overvoltage category III, pollution degree 3, 160V rated voltage, 2.5KV rated test voltage
- Approved by UL, CRJUS, SEV standards, operating temperature range from -40°C to 105°C
Applications
Industrial
Technical Specifications
| Pitch Spacing | 5mm |
|---|---|
| Wire Size (AWG) | 28AWG to 12AWG |
| Wire Size AWG Max | 12AWG |
| Wire Connection Method | Screw |
| Rated Voltage | 300V |
| SVHC | No SVHC (25-Jun-2025) |
| No. of Positions | 5Ways |
|---|---|
| Wire Size AWG Min | 28AWG |
| Conductor Area CSA | 2.5mm² |
| Rated Current | 12A |
| Product Range | - |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .01026 |
