MHDCMR09-ULP
D Sub Backshell, MHDCMR, DE, 90°, Zinc Body

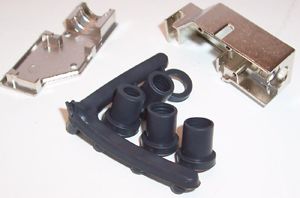

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMH CONNECTORS
Manufacturer Part NoMHDCMR09-ULP
Order Code4861784
Product RangeMHDCMR
Also Known AsDCMR09-ULP, 1060-0135-01
Technical Datasheet
15 total stock globally
500 more incoming. You can reserve stock now
15 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $17.980 ($20.677) |
| 10+ | $15.270 ($17.5605) |
| 25+ | $14.320 ($16.468) |
| 50+ | $13.630 ($15.6745) |
| 100+ | $12.980 ($14.927) |
| 300+ | $12.140 ($13.961) |
Price for:Each
Minimum: 1
Multiple: 1
$17.98 ($20.68 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMH CONNECTORS
Manufacturer Part NoMHDCMR09-ULP
Order Code4861784
Product RangeMHDCMR
Also Known AsDCMR09-ULP, 1060-0135-01
Technical Datasheet
Product RangeMHDCMR
D Sub Shell SizeDE
Cable Exit Angle90°
Connector Body MaterialZinc Body
SVHCTo Be Advised
Product Overview
The MHDCMR09-ULP is a 9-way full Metal Hood for use with D-subminiature connector, compression inserts in thermoplastic compound, UNC 4-40 jackscrew and compression inserts grommet. Nickel-plated zinc construction.
- Re-openable
- Side cable entry
- -25 to +90°C Operating temperature
- Up to 18.4mm cable diameter
Applications
Industrial
Technical Specifications
Product Range
MHDCMR
Cable Exit Angle
90°
SVHC
To Be Advised
D Sub Shell Size
DE
Connector Body Material
Zinc Body
Technical Docs (2)
Alternatives for MHDCMR09-ULP
1 Product Found
Associated Products
5 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.058
