ATBTLC1000-XPRO
Evaluation Board, ATBTLC1000 Bluetooth Module, For Xplained Pro, Temperature Sensor

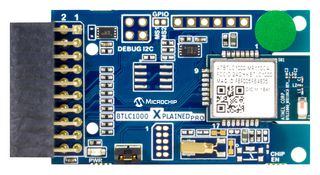

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $53.850 ($61.9275) |
Price for:Each
Minimum: 1
Multiple: 1
$53.85 ($61.93 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMICROCHIP
Manufacturer Part NoATBTLC1000-XPRO
Order Code2819845
Silicon ManufacturerMicrochip
Silicon Core NumberATBTLC1000-MR110CA
Kit Application TypeWireless Connectivity
Application Sub TypeBluetooth Low Energy
Kit ContentsXplained Pro Extension Board ATBTLC1000
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The ATBTLC1000-XPRO is a BTLC1000 Xplained Pro evaluation kit. The BTLC1000 Xplained Pro extension evaluation kit is to evaluate the ATBTLC1000-MR110CA BLE module. The BTLC1000 MR110CA module is based on lowest power Bluetooth Low Energy 4.1 compliant SoC, ATBLTC1000-MU-T. The XPro extension can be plugged into any of the supported host MCU Xplained Pro evaluation boards to quickly add Bluetooth Smart connectivity to the existing host MCU platform.
- ATBTLC1000-MR110CA BLE module with 2.4GHz BLE4.1 compliant ATBTLC1000A SoC
- 3.3V power source from the Xplained Pro through XPro extension header
- RESET switch (option provided for user to mount)
- Power LED
- Current measurement header
- On board temperature sensor
- SWD header (option provided for user to mount)
- External SPI serial flash (option provided for user to mount)
- Extension port header for UART, debug UART, GPIO
Technical Specifications
Silicon Manufacturer
Microchip
Kit Application Type
Wireless Connectivity
Kit Contents
Xplained Pro Extension Board ATBTLC1000
SVHC
No SVHC (21-Jan-2025)
Silicon Core Number
ATBTLC1000-MR110CA
Application Sub Type
Bluetooth Low Energy
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Thailand
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Thailand
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:5A992.c
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.25
