ATTINY817-XMINI
Evaluation Kit, ATtiny817/816/814/417 MCU's, Xplained Mini, On-Board Debugger, Capacitive Touch

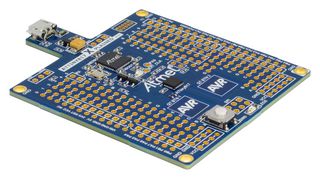

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | ATTINY817-XMINICopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 2674883 |
| Your Part Number | |
| Technical Datasheet |
28 total stock globally
Need more?
28 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $28.510 ($32.7865) |
| 5+ | $27.950 ($32.1425) |
Price for:Each
Minimum: 1
Multiple: 1
$28.51 ($32.79 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | ATTINY817-XMINICopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 2674883 |
| Technical Datasheet | |
| Silicon Manufacturer | Microchip |
| No. of Bits | 8bit |
| Silicon Family Name | ATtiny |
| Core Architecture | AVR |
| Core Sub-Architecture | tinyAVR |
| Silicon Core Number | ATtiny817 |
| Kit Contents | DEV BOARD ATtiny817 |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
ATTINY817-XMINI is an ATtiny817 Xplained Mini evaluation kit. This is a hardware platform for evaluating ATtiny817 microcontroller. Supported by the Atmel Studio and MPLAB® X integrated development platform, the kit provides easy access to the features of the ATtiny817 and explains how to integrate the device into a custom design. This Xplained Mini series evaluation kit includes an on-board mini embedded debugger. No external tools are necessary to program the ATtiny817.
- ATtiny817 microcontroller
- One yellow user LED, one mechanical button and two QTouch® buttons
- mEDBG: Auto-ID for board identification in Atmel Studio/MPLAB® X
- mEDBG: one green board status LED, programming and debugging, Virtual COM Port (CDC)
- USB powered
- ATtiny817 power sources: 5V from USB, 3.3V regulator and external voltage
- Arduino shield compatible footprints
Notes
90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
Technical Specifications
| Silicon Manufacturer | Microchip |
|---|---|
| Silicon Family Name | ATtiny |
| Core Sub-Architecture | tinyAVR |
| Kit Contents | DEV BOARD ATtiny817 |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Bits | 8bit |
|---|---|
| Core Architecture | AVR |
| Silicon Core Number | ATtiny817 |
| Product Range | - |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Malaysia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .029483 |
