MICROCHIP DM163026

Demonstration Board, Low Power Solutions, PIC18F4620, USART, In-Circuit Debugger and Programming

MICROCHIP DM163026
×

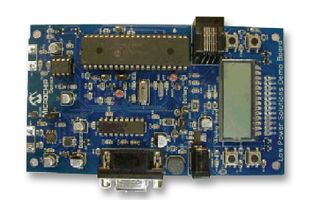

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MICROCHIP MICROCHIP
Manufacturer Part No:
DM163026
Order Code:
8753008
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
DM163026   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Overview

The DM163026 is a low power solutions demonstration board provides designers a convenient and fun way to explore PICmicro nanowatt features within a functional ultrasonic range finder application. It features the PIC18F4620, latest power managed device. The development tool is ideal for learning nanowatt features and implementing system power reduction techniques. The low power solutions demonstration board is part of the workshop in a box 2, a complete nanowatt training kit designed for self paced and instructor led training. The nanoWatt features to reduce power consumption, improving system power consumption and improving board performance.
  • Fully functional ultrasonic range finder with LCD display
  • Featured with DC boost circuit
  • Connector for MPLAB ICD 2 in circuit debugger
  • Two power supply options 9V power supply or 9V battery
  • Test points to measure system and PICmicro power consumption via current meter
  • Three switches for input and a reset switch and 2 LEDs
  • Board contains TC1047A temperature sensor
  • In circuit debugger (ICD) connector for programming via in circuit serial programming

Applications

Power Management

Contents

Low power solutions demonstration board preprogrammed with functional range finder code, CD with user's guide, sample code written for the MPLAB C18 Compiler and three step by step labs illustrating nanoWatt features.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Microchip

:
8bit

:
PIC18F4xxx

:
PIC

:
PIC18

:
PIC18F

:
Low Power Solutions Demonstration Board, CD with Users Guide, Sample Code Written for MPLAB Compiler

:
-
