MC11606C6WR-FPTLW

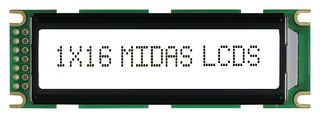

Alphanumeric LCD, 16 x 1, Black on White, 5V, Parallel, Cyrillic, Transflective
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 16 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $23.900 ($27.485) |
| 5+ | $21.660 ($24.909) |
| 10+ | $19.600 ($22.540) |
| 50+ | $18.450 ($21.2175) |
| 100+ | $17.880 ($20.562) |
Price for:Each
Minimum: 1
Multiple: 1
$23.90 ($27.48 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMC11606C6WR-FPTLW
Order Code3154971
Technical Datasheet
Character Count x Line16 x 1
Display AppearanceBlack on White
Logic Voltage5V
Interface TypeParallel
Font SetCyrillic
Display ModeTransflective
Character Size6.56mm
LCD Display TypeFSTN
Module Size85mm x 28mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOB
Backlighting ColourWhite
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
- Number of Characters: 16 x 1
- Module dimension: 85x28x13.5mm
- View area: 66x16mm
- Active area: 59.62mm x 6.56mm
- Dot size: 0.55 x 0.75 mm
- Dot pitch: 0.63 x 0.83 mm
- Character size: 3.07mm x 6.56mm
- Character pitch: 3.77 x 6.56 mm
- LCD type: FSTN Positive Transflective
- Duty: 1/16
- View direction: 6 o’clock
- Backlight Type: LED, White
- IC: ST7066U
Technical Specifications
Character Count x Line
16 x 1
Logic Voltage
5V
Font Set
Cyrillic
Character Size
6.56mm
Module Size
85mm x 28mm
Operating Temperature Max
70°C
Backlighting Colour
White
SVHC
No SVHC (27-Jun-2024)
Display Appearance
Black on White
Interface Type
Parallel
Display Mode
Transflective
LCD Display Type
FSTN
Operating Temperature Min
-20°C
Display Construction
COB
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85312040
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.04
