MC21605G6WR-BNMLW-V2
Alphanumeric LCD, 16 x 2, White on Blue, 5V, Parallel, English, Cyrillic, Transflective

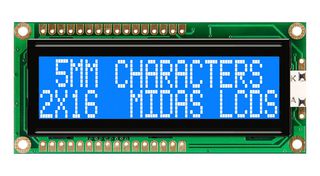

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMC21605G6WR-BNMLW-V2
Order Code2675604
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $24.290 ($27.9335) |
| 5+ | $22.020 ($25.323) |
| 10+ | $19.930 ($22.9195) |
| 50+ | $18.740 ($21.551) |
| 100+ | $18.200 ($20.930) |
Price for:Each
Minimum: 1
Multiple: 1
$24.29 ($27.93 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMC21605G6WR-BNMLW-V2
Order Code2675604
Technical Datasheet
Character Count x Line16 x 2
Display AppearanceWhite on Blue
Logic Voltage5V
Interface TypeParallel
Font SetEnglish, Cyrillic
Display ModeTransflective
Character Size5.23mm
LCD Display TypeBSTN
Module Size80mm x 36mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOB
Backlighting ColourWhite
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
Chip-on-board 2 x 16 character LCD display has a white on blue appearance and has an English / Russian font set. This display uses the ST7066U controller.
- Character height of 5.23mm, connection pitch of 2.54 mm
- 5V logic voltage, parallel interface
- STN transmissive display mode
- BSTN LC type , COB construction
- Module size is 80mm x 36mm x 13.50mm
- Operating temperature range from -20°C to +70°C
- White LED backlight
- 64.5mm x 16.4mm (W x H) viewing area
- 3mm x 5.23mm (W x H) character size, 0.56mm x 0.61mm (W x H) dot size
- 6 O'clock viewing angle
Technical Specifications
Character Count x Line
16 x 2
Logic Voltage
5V
Font Set
English, Cyrillic
Character Size
5.23mm
Module Size
80mm x 36mm
Operating Temperature Max
70°C
Backlighting Colour
White
SVHC
No SVHC (27-Jun-2024)
Display Appearance
White on Blue
Interface Type
Parallel
Display Mode
Transflective
LCD Display Type
BSTN
Operating Temperature Min
-20°C
Display Construction
COB
Product Range
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.04
