MDT1010C3IH-LVDS
TFT LCD, 10.1 ", 1280 x 800 Pixels, Landscape, RGB, 3.3V

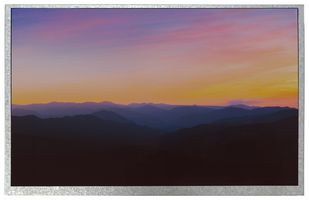

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MDT1010C3IH-LVDSCopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 3565108 |
| Product Range | MDT1010C |
| Your Part Number | |
| Technical Datasheet |
1 total stock globally
Need more?
1 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $234.940 ($270.181) |
| 5+ | $221.770 ($255.0355) |
Price for:Each
Minimum: 1
Multiple: 1
$234.94 ($270.18 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MDT1010C3IH-LVDSCopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 3565108 |
| Product Range | MDT1010C |
| Technical Datasheet | |
| Display Size | 10.1" |
| Resolution | 1280 x 800 Pixels |
| VGA Size | - |
| Display Orientation | Landscape |
| Display Appearance | RGB |
| Logic Voltage | 3.3V |
| Interface Type | LVDS |
| Display Brightness | 500cd/m² |
| Touchscreen | No Touchscreen |
| Module Size | 229.46mm x 149.1mm |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Display Pinout | 40 Way Connector |
| Product Range | MDT1010C |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
- 10.1" IPS TFT (Thin Film Transistor) display
- 1280x800 resolution, LVDS interface
- LED backlight
- 500cd/m2 brightness
- All-round viewing angles
- Temperature range from -20°C to +70°C
- 229.46 x 149.10 x 4.50mm panel size
- 216.96 x 135.60mm viewing area
- 40 way, 0.5mm pitch
- EK79202 driver IC
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Display Size | 10.1" |
|---|---|
| VGA Size | - |
| Display Appearance | RGB |
| Interface Type | LVDS |
| Touchscreen | No Touchscreen |
| Operating Temperature Min | -20°C |
| Display Pinout | 40 Way Connector |
| SVHC | No SVHC (25-Jun-2025) |
| Resolution | 1280 x 800 Pixels |
|---|---|
| Display Orientation | Landscape |
| Logic Voltage | 3.3V |
| Display Brightness | 500cd/m² |
| Module Size | 229.46mm x 149.1mm |
| Operating Temperature Max | 70°C |
| Product Range | MDT1010C |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85312095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .21 |
