Available to Order
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $6.440 ($7.406) |
| 10+ | $6.060 ($6.969) |
| 50+ | $5.660 ($6.509) |
| 100+ | $5.410 ($6.2215) |
| 150+ | $5.290 ($6.0835) |
| 250+ | $5.110 ($5.8765) |
Price for:Each
Minimum: 1
Multiple: 1
$6.44 ($7.41 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.

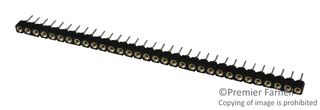

Product Information
ManufacturerMILL-MAX
Manufacturer Part No310-93-132-41-001
Order Code2678563
Product Range310
Technical Datasheet
No. of Contacts32Contacts
Connector TypeSIP Socket
Pitch Spacing2.54mm
Product Range310
Row Pitch-
Contact MaterialBeryllium Copper
Contact PlatingGold Plated Contacts
Product Overview
The 310 series single-row through-hole Interconnect Socket with standard solder tail for use with 0.015 to 0.025-inch diameter leads.
- 3A Current rating
- 1000 Cycles minimum mechanical life
- 10mΩ Maximum resistance
- -55 to 125°C Operating temperature range
- #30, Standard 4-finger contact
Applications
Industrial
Technical Specifications
No. of Contacts
32Contacts
Pitch Spacing
2.54mm
Row Pitch
-
Contact Plating
Gold Plated Contacts
Connector Type
SIP Socket
Product Range
310
Contact Material
Beryllium Copper
Technical Docs (1)
Alternatives for 310-93-132-41-001
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:No
RoHS Phthalates Compliant:No
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00378
