MOLEX 15133-0701

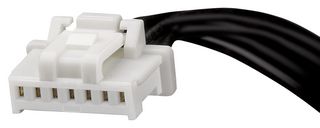

Cable Assembly, PicoClasp Receptacle to PicoClasp Receptacle, 7 Ways, 1 mm, 1 Row, 100 mm, 3.9 "

MOLEX 15133-0701
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MOLEX MOLEX
Manufacturer Part No:
15133-0701
Order Code:
2747348
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Also Known As:
GTIN UPC EAN: 191128140218
ECAD / MCAD
Supply Frame Models Link

Product Range Selector (Pico-Clasp OTS 15133)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
PicoClasp Receptacle to PicoClasp Receptacle

:
1mm

:
1 Row

:
100mm

:
3.9"

:
Pico-Clasp OTS 15133

:
Black

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (3)

Product Overview

The 15133-0701 from Molex is a Pico-Clasp™ to Pico-Clasp™ Off-the-Shelf (OTS) receptacle cable assembly with 100mm cable length and 7 loaded circuits. This cable assembly mates with 501190, 501571 PCB headers. This Pico-Clasp™ cable assembly offers a small 1mm pitch and 1A current rating with positive lock and pin to pin mapping from receptacle to PCB header. It delivers space savings and prevents wire hooking, provides ready to use, plug and play connections. It is ready to use in electronic appliance applications. Provide ease of design, prototyping and production. It is assembled in ISO/TS16949 certified facilities which ensures high quality and meets current automotive industry standards. Typical application include consumer, commercial vehicle, industrial and medical.
  • Female-female, single row dual ended connector configuration
  • Phosphor bronze metal, tin mating plating, tin termination plating
  • White colour nylon resin
  • 50VAC (RMS)/DC maximum voltage and 250VAC dielectric withstanding voltage
  • 20mohm contact resistance and 100Mohm insulation resistance
  • 4.9N max contact insertion force and 4.9N min contact retention to housing
  • Wire size is 28AWG, operating temperature range from -40°C to +85°C
  • UL 1571 approved

Applications

Commercial Vehicle, Consumer Electronics, Industrial, Medical

Also Known As

GTIN UPC EAN: 191128140218

696 total stock globally Need more?

696 UK stock available for 5-8 business days delivery
