172704-0033
D Sub Connector Housing, 5 Ways, D Sub, 172704 Series, Plug, Steel Body

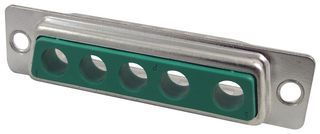

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No172704-0033
Order Code2433185
Product Range172704 Series
Also Known AsFM5W5P-K120
Technical Datasheet
515 total stock globally
Need more?
515 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $4.960 ($5.704) |
| 10+ | $4.520 ($5.198) |
| 25+ | $4.320 ($4.968) |
| 50+ | $4.140 ($4.761) |
| 100+ | $3.940 ($4.531) |
| 250+ | $3.710 ($4.2665) |
| 500+ | $3.530 ($4.0595) |
| 1000+ | $3.350 ($3.8525) |
| 2500+ | $3.250 ($3.7375) |
Price for:Each
Minimum: 1
Multiple: 1
$4.96 ($5.70 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No172704-0033
Order Code2433185
Product Range172704 Series
Also Known AsFM5W5P-K120
Technical Datasheet
No. of Positions5Ways
Insert ArrangementDB-5W5
Connector TypeD Sub
Connector Shell Size-
Product Range172704 Series
No. of Contacts5Contacts
Contact Termination Type-
Connector Body MaterialSteel Body
For Use WithMolex 172704 Series FCT Coaxial, High Power, High Voltage, or Pneumatic Contacts
Contact Material-
Contact Plating-
SVHCNo SVHC (25-Jun-2025)
Product Overview
The FM5W5P-K120 is a 5-way D-sub mixed layout connector, shell made of steel with tin-plated finish. The FM series DB-5W5 plug has through hole termination and PBT insulator.
- Green insulator
- Temperature range (insulator) from -55 to 130°C
Technical Specifications
No. of Positions
5Ways
Connector Type
D Sub
Product Range
172704 Series
Gender
Plug
Connector Body Material
Steel Body
Contact Material
-
SVHC
No SVHC (25-Jun-2025)
Insert Arrangement
DB-5W5
Connector Shell Size
-
No. of Contacts
5Contacts
Contact Termination Type
-
For Use With
Molex 172704 Series FCT Coaxial, High Power, High Voltage, or Pneumatic Contacts
Contact Plating
-
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0073
