173107-0091
Combination Layout D Sub Connector, 173107 Series, DA-7W2, Plug, 7 Contacts, 5 Signal, 2 Power

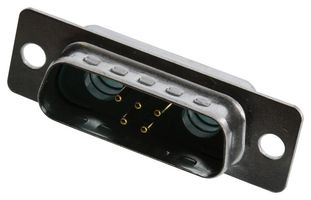

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No173107-0091
Order Code4142515
Product Range173107 Series
Technical Datasheet
30 total stock globally
Need more?
30 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $11.490 ($13.2135) |
| 10+ | $8.630 ($9.9245) |
| 100+ | $7.620 ($8.763) |
| 250+ | $7.040 ($8.096) |
| 500+ | $6.610 ($7.6015) |
| 1000+ | $6.480 ($7.452) |
| 2500+ | $6.360 ($7.314) |
Price for:Each
Minimum: 1
Multiple: 1
$11.49 ($13.21 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No173107-0091
Order Code4142515
Product Range173107 Series
Technical Datasheet
Product Range173107 Series
Insert ArrangementDA-7W2
No. of Contacts7Contacts
Contact Type5 Signal, 2 Power
Contact Termination TypeSolder
Connector MountingPanel Mount, Through Hole Mount
Connector Body MaterialSteel Body
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCLead (07-Nov-2024)
Product Overview
173107-0091 is a 173107 series Shielded FCT mixed layout D-Sub male connector. Mates with FCT mixed layout D-sub, size 2, 7W2, socket. Use with FCT coaxial, high power, high voltage or pneumatic contacts.
- Dual row, 5 circuits (loaded) and 7 circuits (maximum)
- Durability of 500 mating cycles max
- Copper alloy contact material and steel material shell
- Gold over nickel contact plating
- Tin shell plating
- Straight orientation and through hole termination
- Polarized to mating part and polarized to PCB
- IP20 waterproof / dustproof
- Green PBT resin
- Operating temperature range from -55 to +130°C
Technical Specifications
Product Range
173107 Series
Gender
Plug
Contact Type
5 Signal, 2 Power
Connector Mounting
Panel Mount, Through Hole Mount
Contact Material
Copper Alloy
SVHC
Lead (07-Nov-2024)
Insert Arrangement
DA-7W2
No. of Contacts
7Contacts
Contact Termination Type
Solder
Connector Body Material
Steel Body
Contact Plating
Gold Plated Contacts
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (07-Nov-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.011276
