206560-0100
Antenna, PCB, 1.605 GHz to 1.599 GHz, 1.37 dBi Gain, Adhesive, Linear

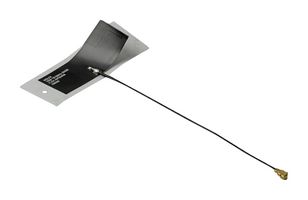

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MOLEX |
|---|---|
| Manufacturer Part No | 206560-0100Copy |
| Manufacturer Standard Lead Time | 25 weeks |
| Order Code | 2944850 |
| Product Range | 206560 Series |
| Also Known As | 2065600100, 206560-0100 |
| Your Part Number | |
| Technical Datasheet |
2,970 total stock globally
Need more?
2,970 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $7.370 ($8.4755) |
| 10+ | $4.540 ($5.221) |
| 25+ | $4.400 ($5.060) |
| 50+ | $4.270 ($4.9105) |
| 100+ | $4.120 ($4.738) |
| 500+ | $3.510 ($4.0365) |
Price for:Each
Minimum: 1
Multiple: 1
$7.37 ($8.48 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MOLEX |
|---|---|
| Manufacturer Part No | 206560-0100Copy |
| Manufacturer Standard Lead Time | 25 weeks |
| Order Code | 2944850 |
| Product Range | 206560 Series |
| Also Known As | 2065600100, 206560-0100 |
| Technical Datasheet | |
| Antenna Type | GNSS |
| Frequency Min | 1.599GHz |
| Frequency Max | 1.605GHz |
| Antenna Mounting | Adhesive / UFL / I-Pex MHF Connector |
| Gain | 1.37dBi |
| VSWR | - |
| Input Power | - |
| Input Impedance | 50ohm |
| Antenna Polarisation | Linear |
| Product Range | 206560 Series |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
- 1558MHz to 1610MHz GNSS flexible antenna
- Suitable for wide range of navigation and tracking applications
- 100mm cable with U.FL connector
- Omnidirectional radiation
- Adhesive mounting
- 40.40mm x 15.40mm x 0.10mm(L x W x H) size
Applications
Wireless
Technical Specifications
| Antenna Type | GNSS |
|---|---|
| Frequency Max | 1.605GHz |
| Gain | 1.37dBi |
| Input Power | - |
| Antenna Polarisation | Linear |
| SVHC | No SVHC (04-Feb-2026) |
| Frequency Min | 1.599GHz |
|---|---|
| Antenna Mounting | Adhesive / UFL / I-Pex MHF Connector |
| VSWR | - |
| Input Impedance | 50ohm |
| Product Range | 206560 Series |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85177900 |
| US ECCN: | 5A991.g |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .001984 |
