353621050

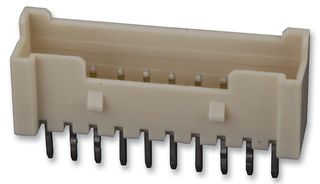

Pin Header, Wire-to-Board, 2 mm, 1 Rows, 10 Contacts, Through Hole Straight, Sherlock 35362 Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No353621050Copy
Order Code2396206
Product RangeSherlock 35362 Series
Also Known As35362-1050, GTIN UPC EAN: 822348259809
Your Part Number
24,452 total stock globally
Need more?
24,452 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 10+ | $0.878 ($1.0097) |
| 100+ | $0.816 ($0.9384) |
| 500+ | $0.675 ($0.7762) |
| 1000+ | $0.615 ($0.7072) |
| 2000+ | $0.609 ($0.7004) |
| 3000+ | $0.603 ($0.6934) |
Price for:Each
Minimum: 10
Multiple: 10
$8.78 ($10.10 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No353621050Copy
Order Code2396206
Product RangeSherlock 35362 Series
Also Known As35362-1050, GTIN UPC EAN: 822348259809
Technical Datasheet
Connector SystemsWire-to-Board
Pitch Spacing2mm
No. of Rows1Rows
No. of Contacts10Contacts
Contact Termination TypeThrough Hole Straight
Product RangeSherlock 35362 Series
Connector ShroudPartially Shrouded
Contact MaterialBrass
Contact PlatingTin Plated Contacts
Connector TypePCB Header
Connector Body MaterialNylon (Polyamide) Body
Connector OrientationStraight
Contact Current Rating2A
SVHCNo SVHC (25-Jun-2025)
Product Overview
The 353621050 is a 10-position 1-row vertical PCB Header with tin-plated brass contacts and natural colour nylon insulator. It mates with 35507 Sherlock™ wire-to-board housing and can be used with 50212-8000 terminal.
- UL94V-0 Flammability
- 2A Maximum current per contact
- 125V Maximum voltage
Applications
Automotive, Consumer Electronics, Security
Technical Specifications
Connector Systems
Wire-to-Board
No. of Rows
1Rows
Contact Termination Type
Through Hole Straight
Connector Shroud
Partially Shrouded
Contact Plating
Tin Plated Contacts
Connector Body Material
Nylon (Polyamide) Body
Contact Current Rating
2A
Pitch Spacing
2mm
No. of Contacts
10Contacts
Product Range
Sherlock 35362 Series
Contact Material
Brass
Connector Type
PCB Header
Connector Orientation
Straight
SVHC
No SVHC (25-Jun-2025)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:South Korea
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:South Korea
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000626
