FFC / FPC Board Connector, 0.5 mm, 24 Contacts, Receptacle, Easy-On 52437, Surface Mount, Bottom

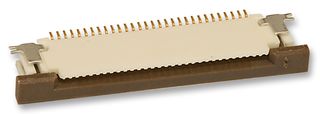

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No52437-2433
Order Code3049610
Product RangeEasy-On 52437
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerMOLEX
Manufacturer Part No52437-2433
Order Code3049610
Product RangeEasy-On 52437
Technical Datasheet
Pitch Spacing0.5mm
No. of Contacts24Contacts
Product RangeEasy-On 52437
Contact Termination TypeSurface Mount
Contact PositionBottom
No. of Rows1 Row
Contact PlatingTin-Bismuth Plated Contacts
Contact MaterialPhosphor Bronze
FFC / FPC Thickness0.3mm
SVHCTo Be Advised
Product Overview
- 52437 series, 0.50mm pitch, Easy-On FFC/FPC connector
- 0.5A current maximum per contact and 50V voltage maximum
- Single row, bottom contact position and right angle orientation
- 24 loaded circuits, slider actuator type and SMD PCB mounting
- Durability (mating cycles max) is 20
- Phosphor bronze material - metal and Tin-Silver-Bismuth material plating mating
- Nylon natural resin
- Features polarized to PCB
- FFC/FPC wire/cable type
- Operating temperature range from -40° to +85°C
Technical Specifications
Pitch Spacing
0.5mm
Gender
Receptacle
Contact Termination Type
Surface Mount
No. of Rows
1 Row
Contact Material
Phosphor Bronze
SVHC
To Be Advised
No. of Contacts
24Contacts
Product Range
Easy-On 52437
Contact Position
Bottom
Contact Plating
Tin-Bismuth Plated Contacts
FFC / FPC Thickness
0.3mm
