743201000

I/O Connector, 29 Contacts, Receptacle, I/O, Through Hole, MicroCross DVI 74320 Series, PCB Mount

MOLEX 743201000
×

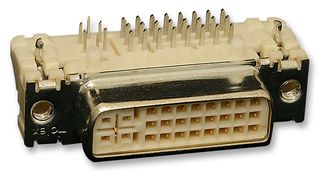

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MOLEX MOLEX
Manufacturer Part No:
743201000
Order Code:
1507833
Product Range
MicroCross DVI 74320 Series
Also Known As:
74320-1000, GTIN UPC EAN: 800753526587
Technical Datasheet:
743201000   Datasheet
See all Technical Docs

Product Range Selector (MicroCross DVI 74320 Series)

See all from this product range

Product Overview

The 0743201000 is a 2.34mm long PC tail 29-circuit right-angle MicroCross™ DVI-I Digital/Analogue Visual Interface PCB Receptacle for wire to board application. It is made of copper alloy with gold plating on mating area and tin plating on termination. It mates with 88744, 74323 and use with hex screw kit 71781-1000 or 71781-2000.
  • 3A Maximum current rating per contact
  • -20 to 85°C Operating temperature range
  • 100 Maximum mating cycles durability
  • UL94V-0 Flammability rating
  • Through hole style termination interface

Applications

Computers & Computer Peripherals, Industrial, Sound & Video

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
29Contacts

:
Receptacle (View Associated Connectors)

:
I/O

:
Through Hole

:
MicroCross DVI 74320 Series

:
PCB Mount

:
Gold Plated Contacts

:
Copper
