75586-0010

I/O Connector, 38 Contacts, Receptacle, Mini SAS, Surface Mount, iPass 75586 Series, PCB Mount

75586-0010 - I/O Connector, 38 Contacts, Receptacle, Mini SAS, Surface Mount, iPass 75586 Series, PCB Mount
75586-0010 - I/O Connector, 38 Contacts, Receptacle, Mini SAS, Surface Mount, iPass 75586 Series, PCB Mount

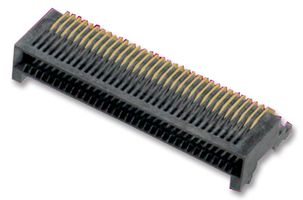

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MOLEX MOLEX
Manufacturer Part No:
75586-0010
Order Code:
1704261
Product Range
iPass 75586 Series
Also Known As:
GTIN UPC EAN: 822348852499
Technical Datasheet:
75586-0010   Datasheet
See all Technical Docs

Product Overview

The 75586-0010 is a 0.8mm pitch right-angle iPass™ Mini Multi-Lane PCI Express I/O receptacle for wire-to-board application. It features 38-circuit, 1-port, 2-row for external application and supports QSFP14/FDR. It is made of high performance alloy and high temperature thermoplastic resin with gold plating on mating area and tin plating on termination. It mates with 74547 iPass™ cable assembly.
  • Maximum current per contact is 0.5A
  • Operating temperature range from -40°C to 80°C
  • Maximum durability of 50 mating cycles
  • Surface mount style termination interface

Applications

Communications & Networking

Product Information


:
38Contacts

:
Receptacle

:
Mini SAS

:
Surface Mount

:
iPass 75586 Series

:
PCB Mount

:
Gold Plated Contacts

:
Copper Alloy
