78723-1001
Memory Card Connector, Micro SIM, Push-Pull, 6 Contacts, Copper Alloy, Gold Plated Contacts
1,279 total stock globally
Need more?
1279 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 10+ | $2.760 ($3.174) |
| 25+ | $2.560 ($2.944) |
| 50+ | $2.450 ($2.8175) |
| 100+ | $2.350 ($2.7025) |
| 250+ | $2.200 ($2.530) |
| 500+ | $2.080 ($2.392) |
| 1200+ | $1.840 ($2.116) |
| 2400+ | $1.790 ($2.0585) |
Price for:Each (Supplied on Cut Tape)
Minimum: 10
Multiple: 10
$27.60 ($31.74 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No78723-1001
Order Code2213306
Product Range78723
Also Known AsGTIN UPC EAN: 887191064444
Technical Datasheet
Memory / Card TypeMicro SIM
Insert & Eject MechanismPush-Pull
No. of Contacts6Contacts
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Product Range78723
SVHCNo SVHC (25-Jun-2025)
Product Overview

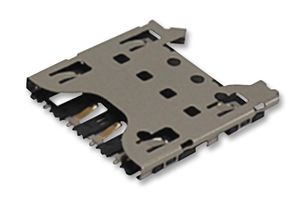

The 78723-1001 is a 6-way surface mount push-pull micro-SIM card socket with spring tab, gold-plated copper contact. Horizontal entry angle, normal PCB mounting side and PCB retention.
- Current rating per contact is 0.5A
- Maximum voltage is 5VDC
- 500 mating cycles durability
- Operating temperature range from -40 to +85°C
Technical Specifications
Memory / Card Type
Micro SIM
No. of Contacts
6Contacts
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (25-Jun-2025)
Insert & Eject Mechanism
Push-Pull
Contact Material
Copper Alloy
Product Range
78723
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000717
