89762-9290

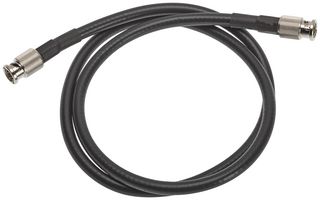

RF / Coaxial Cable Assembly, BNC Plug to BNC Plug, Belden 4794R, 75 ohm, 3.28 ft, 1 m, Black
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No89762-9290
Order Code2891977
Product Range89762 Series
Also Known AsGTIN UPC EAN: 889056911344
Technical Datasheet
38 total stock globally
Need more?
38 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $202.650 ($233.0475) |
Price for:Each
Minimum: 1
Multiple: 1
$202.65 ($233.05 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No89762-9290
Order Code2891977
Product Range89762 Series
Also Known AsGTIN UPC EAN: 889056911344
Technical Datasheet
Cable Length - Imperial3.28ft
Connector to ConnectorBNC Plug to BNC Plug
Cable Length - Metric1m
Coaxial Cable TypeBelden 4794R
Connector Type ABNC Straight Plug
Connector Type BBNC Straight Plug
Impedance75ohm
Jacket ColourBlack
Product Range89762 Series
Product Overview
The 89762-9290 from Molex is a 75 ohm, 12 GHz BNC Straight Plug-to-BNC Straight Plug RF cable assembly with black Belden 4794R cable, 1 m length.
- BNC straight plug-to-BNC straight plug cable assembly
- Nickel-plated beryllium copper/brass body
- Gold-plated brass centre contact
- Impedance 75 ohm
- Frequency 12 GHz
- Operating temperature range of -30°C to +75°C
- Black Belden 4794R cable
- 1m length
Technical Specifications
Cable Length - Imperial
3.28ft
Cable Length - Metric
1m
Connector Type A
BNC Straight Plug
Impedance
75ohm
Product Range
89762 Series
Connector to Connector
BNC Plug to BNC Plug
Coaxial Cable Type
Belden 4794R
Connector Type B
BNC Straight Plug
Jacket Colour
Black
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85442000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.116
