ABS-229-RC
Speaker, ABS, Paper-Cloth Cone, 2 W, 8 ohm, 0 Hz to 20 kHz
Image is for illustrative purposes only. Please refer to product description.
305 total stock globally
Need more?
305 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $14.780 ($16.997) |
| 10+ | $13.720 ($15.778) |
| 25+ | $12.800 ($14.720) |
| 50+ | $11.960 ($13.754) |
| 100+ | $11.470 ($13.1905) |
| 250+ | $11.030 ($12.6845) |
Price for:Each
Minimum: 1
Multiple: 1
$14.78 ($17.00 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoABS-229-RC
Order Code1867857
Technical Datasheet
Driver TypeMiniature
Impedance8ohm
External Width - Metric23mm
Power Rating Nom1W
Resonant Frequency700Hz
Sound Pressure Level (SPL)98dB
Speaker ShapeOval with Rectangular Frame
External Width - Imperial0.906"
Product Dimensions57.5mm x 23mm x 14.85mm
Frequency Range0Hz to 20kHz
Frequency Response Min700Hz
Temperature Grade-
Frequency Response Max20kHz
IP Rating-
Product Range-
Speaker MountingFlange Mount
Power Rating Max2W
External Length - Metric57.5mm
External Depth - Metric14.9mm
External Length - Imperial2.264"
External Depth - Imperial0.587"
SVHCNo SVHC (21-Jan-2025)
Product Overview

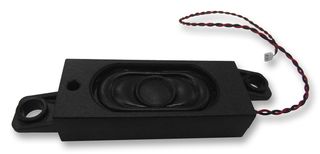

The ABS-229-RC is a black wired-connector Speaker with ABS housing and paper-cloth cone. It features maximum 2W power rating and generates 98dB loudness.
- -20 to +60°C Operating temperature range
- Pro Signal products are rated 4.2 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
Applications
Medical Electronics, Consumer Electronics, Clock & Timing, Test & Instrumentation, Agriculture, Automotive Systems, Sensing & Instrumentation, Computers & Computer Peripherals, Remote Sensing and Metering, Safety
Technical Specifications
Driver Type
Miniature
External Width - Metric
23mm
Resonant Frequency
700Hz
Speaker Shape
Oval with Rectangular Frame
Product Dimensions
57.5mm x 23mm x 14.85mm
Frequency Response Min
700Hz
Frequency Response Max
20kHz
Product Range
-
Power Rating Max
2W
External Depth - Metric
14.9mm
External Depth - Imperial
0.587"
Impedance
8ohm
Power Rating Nom
1W
Sound Pressure Level (SPL)
98dB
External Width - Imperial
0.906"
Frequency Range
0Hz to 20kHz
Temperature Grade
-
IP Rating
-
Speaker Mounting
Flange Mount
External Length - Metric
57.5mm
External Length - Imperial
2.264"
SVHC
No SVHC (21-Jan-2025)
