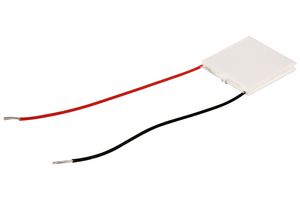

MCPK2-19808AC-S
Peltier Cooler, 51.6W
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MCPK2-19808AC-SCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 1639734 |
| Product Range | MCPK |
| Your Part Number | |
| Technical Datasheet |
128 total stock globally
Need more?
128 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $100.880 ($116.012) |
| 3+ | $87.620 ($100.763) |
| 10+ | $85.520 ($98.348) |
| 25+ | $81.970 ($94.2655) |
Price for:Each
Minimum: 1
Multiple: 1
$100.88 ($116.01 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MCPK2-19808AC-SCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 1639734 |
| Product Range | MCPK |
| Technical Datasheet | |
| No. of Stages | 2 Stage |
| Cooling Power Pc | 51.6W |
| Current Max @ Diff Temperature Max | 8.5A |
| Voltage Max @ Diff Temperature Max | 16.1VDC |
| Length | 40mm |
| Width | 40mm |
| Depth | 7.05mm |
| Temperature Difference Max | 85°C |
| Product Range | MCPK |
| Internal Resistance | 1.65ohm |
| Lead Wires | UL-Style 1569, Unstripped |
| SVHC | To Be Advised |
Product Overview
Thermoelectric peltier cooler miniature module for cooling components such as infra-red detector chips, microwave IC's, fibre-optic lasers and detectors.
- Multi-stage
- Silicone sealed
- Multicomp products are rated 4.6 out of 5 stars
- 12-month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Technical Specifications
| No. of Stages | 2 Stage |
|---|---|
| Current Max @ Diff Temperature Max | 8.5A |
| Length | 40mm |
| Depth | 7.05mm |
| Product Range | MCPK |
| Lead Wires | UL-Style 1569, Unstripped |
| Cooling Power Pc | 51.6W |
|---|---|
| Voltage Max @ Diff Temperature Max | 16.1VDC |
| Width | 40mm |
| Temperature Difference Max | 85°C |
| Internal Resistance | 1.65ohm |
| SVHC | To Be Advised |
Technical Docs (1)
Alternatives for MCPK2-19808AC-S
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84186900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .037 |
