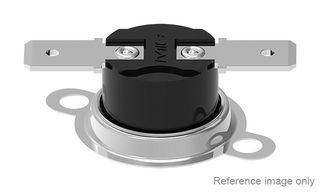

MP-11-140/-/E121B14H221
Thermostat Switch, Snap Action, 140 °C Reset, Normally Closed, 10A at 250V, Flange Mount
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP-11-140/-/E121B14H221Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 4205808 |
| Product Range | MP Manual reset Thermostats |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $3.900 ($4.485) |
| 10+ | $3.250 ($3.7375) |
| 25+ | $3.040 ($3.496) |
| 50+ | $2.930 ($3.3695) |
| 100+ | $2.810 ($3.2315) |
| 200+ | $2.330 ($2.6795) |
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP-11-140/-/E121B14H221Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 4205808 |
| Product Range | MP Manual reset Thermostats |
| Technical Datasheet | |
| Switching Temperature | - |
| Reset Temperature | 140°C |
| Contact Operation | Normally Closed |
| Sensor Terminals | Quick Connect |
| Sensor Housing | Flange Mount |
| Contact Rating | 10A at 250V |
| Product Range | MP Manual reset Thermostats |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
MP-11-140/-/E121B14H221 is a snap-action thermostat switch used to regulate the temperature of a system or environment by sensing temperature changes of 140°C and activating or deactivating heating or cooling systems accordingly. It is normally closed and operates in the range of 250V at 10A. Thermostat switches are commonly used in heating, ventilation, air conditioning (HVAC) systems, appliances, and various industrial and commercial applications to maintain desired temperature levels.
- Manual reset thermostat
- Heat resistant is 170°C
- Resistance between terminals is below 50mohm at DC5V/0.25A
- Insulated resistance is above 100Mohm with DC500V between terminals and cap
- Dielectric strength is 1500VAC at 1minute between terminals and cap
- Set temperature range from 15°C to 250°C
- Certified as per GB14536. 1-2008, GB14536. 10-2008, GB/T22687-2008, EN60730-1, EN60730-2-9 standards
- AgNi/Cu (T2) stationary/movable contact, brass stationary arm, PF case/top cover, aluminium cap
- Bimetal disc, alloy copper movable arm, steel (nickel plated) reset pin, ceramic actuator pin
- Reset 140°C ±4°C temperature
Applications
Temperature Controllers, Industrial, Automation & Process Control, HVAC
Contents
x1 Thermostat switch.
Notes
Secure flange mounting to surfaces.
Technical Specifications
| Switching Temperature | - |
|---|---|
| Contact Operation | Normally Closed |
| Sensor Housing | Flange Mount |
| Product Range | MP Manual reset Thermostats |
| Reset Temperature | 140°C |
|---|---|
| Sensor Terminals | Quick Connect |
| Contact Rating | 10A at 250V |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (1)
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90321080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .005 |
