MP-H-EV-MEAS-KIT1

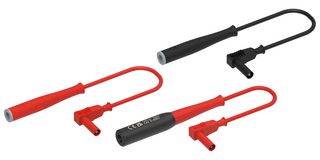

Test Lead Set, 2x EVF6 Type 2 and Combo CCS 2 Black & Red Sockets, 1x EVF8 CCS 2 Red Socket, EV/PHEV
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP-H-EV-MEAS-KIT1Copy
Manufacturer Standard Lead Time6 weeks
Order Code4661630
Product RangeMulticomp Pro Test Plugs
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $327.500 ($376.625) |
| 5+ | $283.410 ($325.9215) |
Price for:1 Kit
Minimum: 1
Multiple: 1
$327.50 ($376.62 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP-H-EV-MEAS-KIT1Copy
Manufacturer Standard Lead Time6 weeks
Order Code4661630
Product RangeMulticomp Pro Test Plugs
Technical Datasheet
Kit Contents2x EVF6 Type 2 and Combo CCS 2 Black & Red Socket Leads and 1x EVF8 CCS 2 Red Socket Lead
Product RangeMulticomp Pro Test Plugs
SVHCNo SVHC (21-Jan-2025)
Product Overview
The Multicomp Pro Test Lead Kit 1 is designed for insulation resistance testing in electric and hybrid vehicles. It enables accurate measurement between the protective earth pin and Phase/Neutral pins of a Type 2 inlet, as well as between the earth pin and DC+/DC− pins of a Combo CCS2 inlet.
- EV and PHEV electrical insulation measuring on both type 2 and combo CCS 2 inlets
- EN / IEC 62196 3 and 62196 3 compliant
- CAT III / 600 V CAT IV. 12 amps.
- IP2X according to EN / IEC 60529
- Reinforced insulation
Applications
Test & Measurement, Signal Processing, Education, Safety, Prototyping
Technical Specifications
Kit Contents
2x EVF6 Type 2 and Combo CCS 2 Black & Red Socket Leads and 1x EVF8 CCS 2 Red Socket Lead
SVHC
No SVHC (21-Jan-2025)
Product Range
Multicomp Pro Test Plugs
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:France
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:France
Country in which last significant manufacturing process was carried out
Tariff No:85444290
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.14
