| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP007722Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3778806 |
| Product Range | MP-ECP Slimline |
| Also Known As | GTIN UPC EAN: 5051259248519 |
| Your Part Number | |
| Technical Datasheet |
10 total stock globally
Need more?
10 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $124.810 ($143.5315) |
| 5+ | $119.400 ($137.310) |
| 10+ | $115.140 ($132.411) |
Price for:Each
Minimum: 1
Multiple: 1
$124.81 ($143.53 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP007722Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3778806 |
| Product Range | MP-ECP Slimline |
| Also Known As | GTIN UPC EAN: 5051259248519 |
| Technical Datasheet | |
| Power Supply Applications | LED Lighting |
| Output Power Max | 200W |
| Output Voltage Max | 12VDC |
| Output Current | 15A |
| LED Driver Mode | Constant Voltage |
| Input Voltage Min | 200V |
| Input Voltage Max | 240V |
| Product Range | MP-ECP Slimline |
| SVHC | To Be Advised |
Product Overview

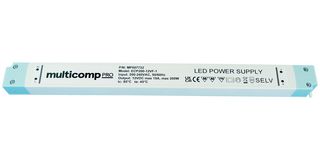

These Multicomp Pro ECP series are standard non-dim LED drivers. These low profile and are suitable for indoor use with screw terminals making them easy to install. The series comes in 15W, 30W,50W, 75W,100W,150W and 200W variations. Available in both constant current and constant voltage design.
- 200W, 12V, IP20 slimline constant voltage LED driver
- Flicker free
- AC input range 200VAC to 240VAC
- Built in PFC function
- Efficiency up to 93%
- Short circuit/ over loading/ over current/ over temperature protections
- Full protection plastic housing easy installation
- Cooling by free air convection
- Suitable for profile lighting and lightboxes
- 3 years warranty
- Working Temperature: -20°C to +45°C
Applications
LED Lighting, Power Supplies, Electrical, Installations
Notes
Safety standards: EN613471, EN61347-2-13; EMS: EN61000-3-2, EN61000-3-3, EN61547; EMF: EN62493-2010; ERP: EN1194-2012
Technical Specifications
| Power Supply Applications | LED Lighting |
|---|---|
| Output Voltage Max | 12VDC |
| LED Driver Mode | Constant Voltage |
| Input Voltage Max | 240V |
| SVHC | To Be Advised |
| Output Power Max | 200W |
|---|---|
| Output Current | 15A |
| Input Voltage Min | 200V |
| Product Range | MP-ECP Slimline |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85049090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .4 |
