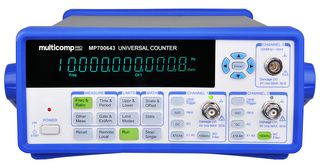

Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP700643
Order Code3588243
Technical Datasheet
Bandwidth6.5GHz
Sensitivity-
External Height105mm
External Width235mm
External Depth375mm
Plug Type-
SVHCNo SVHC (08-Jul-2021)
Product Overview
The MP700643 is a frequency counter capable of measuring up to 6.5GHz (CH3), with a display resolution of 11 digits/s. This device can measure frequency, period, duty cycle, frequency ratio, totalize, phase difference, pulse width, time interval and DCV. Also, utility statistics functions of multi-average, maximum, minimum, PPM, standard deviation and Allan variance for frequency measurements.
- CH1 & CH2 measurement ranges of 0.001Hz to 200MHz, CH3 200MHz to 6.5GHz
- 5ns ~ 1000s period
- 1ns ~ 10000s time interval range
- 150ps time resolution
- 1ns ~ 10000s pulse width
- 1% ~ 99% duty cycle
- 50mVrms ~ 1.0Vrms (sine), 150mVpp ~ 4.5Vpp (pulse) dynamic range
- 1MΩ//35pF or 50Ω input impedance
- x1 or x10 input attenuation
- Trigger level of -5.000V ~ +5.000V
- USB, RS-232 & GPIB interfaces
- Device dimension is 375mm x 105mm x 235mm
- Device weight is 4.2kg
Notes
Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
Technical Specifications
Bandwidth
6.5GHz
External Height
105mm
External Depth
375mm
SVHC
No SVHC (08-Jul-2021)
Sensitivity
-
External Width
235mm
Plug Type
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:90304000
US ECCN:3A992.a
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (08-Jul-2021)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):4.2
