MP720665

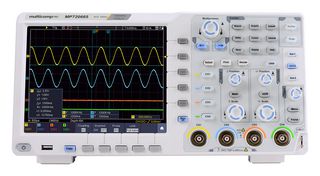

MP720665 from Multicomp Pro is an 8-bit, 4 channel 100MHz touchscreen digital oscilloscope. This device offers the same specification and functionality as Multicomp Pro MP720025, however also features an in-built 2 channel 25MHz arbitrary function generator. This device also includes frequency counter and multimeter functionalities, decoder, multi-interface integration, SCPI and LabVIEW support.

• 8" high-resolution touch-screen LCD screen (800x600)
• 45,000 frame/sec waveform refresh rate, multi-level grey scale and colour temperature display
• 2 channel, 25MHz arbitrary waveform generator function
• Horizontal rate - 2ns/div - 1000s/div, step by 1-2-5
• Sample rate/real-time accuracy of ±2.5 ppm
• DC, AC and GND input couplings
• 1mV/div - 10V/div vertical sensitivity (at input)
• Edge, video, pulse, slope, runt, windows, timeout, Nth edge, logic, I2C, SPI, RS232, CAN trigger
• I2C, SPI, RS232 and CAN bus decoding
• Auto, normal and single trigger modes
• USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN and VGA communication interfaces
• Dimension is 340 x 177 x 90mm
• UK type G and Euro type E / F (Schuko) mains plugs
• Supplied with UK Type G & Euro Type E/F Power Cord

Contents

Digital storage oscilloscope, 4x probes, Probe manual, Accessories bag, USB Type B cable, Operating instructions, CD-ROM, UK & EU power cords.

Notes

Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
