PD1002
Multipair Cable, Per M, Screened, 2 Pair, 0.22 mm²

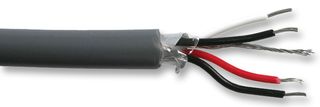

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | PD1002Copy |
| Manufacturer Standard Lead Time | 26 weeks |
| Order Code | 1387731 |
| Your Part Number | |
| Technical Datasheet |
396 total stock globally
100 more incoming. You can reserve stock now
396 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $2.400 ($2.760) |
| 10+ | $2.320 ($2.668) |
| 25+ | $2.240 ($2.576) |
| 50+ | $2.090 ($2.4035) |
Price for:1 Metre
Minimum: 1
Multiple: 1
$2.40 ($2.76 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | PD1002Copy |
| Manufacturer Standard Lead Time | 26 weeks |
| Order Code | 1387731 |
| Technical Datasheet | |
| Cable Shielding | Screened |
| No. of Pairs | 2 Pair |
| Wire Gauge | - |
| Conductor Area CSA | 0.22mm² |
| Reel Length (Imperial) | - |
| Reel Length (Metric) | - |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 7 x 0.203mm |
| Voltage Rating | - |
| Jacket Material | PVC |
| Conductor Material | Copper |
| External Diameter | 5.71mm |
| Product Range | - |
Product Overview
The PD1002 is a 0.22mm² 2-pair twisted Screened Cable with tinned copper conductors with PVC insulation. It is screened with aluminised polyester tape.
- CPR: Not Yet Qualified
- 77Ω Resistance
- 98pF Core to core capacitance
- Multicomp Pro products are rated 4.5 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial
Technical Specifications
| Cable Shielding | Screened |
|---|---|
| Wire Gauge | - |
| Reel Length (Imperial) | - |
| Jacket Colour | Grey |
| Voltage Rating | - |
| Conductor Material | Copper |
| Product Range | - |
| No. of Pairs | 2 Pair |
|---|---|
| Conductor Area CSA | 0.22mm² |
| Reel Length (Metric) | - |
| No. of Max Strands x Strand Size | 7 x 0.203mm |
| Jacket Material | PVC |
| External Diameter | 5.71mm |
Technical Docs (1)
Alternatives for PD1002
1 Product Found
Associated Products
7 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .037 |
