S286B-1
Keylock Switch, Off-On, SPDT, 2 Position, 4 A
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | S286B-1Copy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 1735374 |
| Your Part Number | |
| Technical Datasheet |
729 total stock globally
575 more incoming. You can reserve stock now
729 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $16.370 ($18.8255) |
| 5+ | $13.900 ($15.985) |
| 10+ | $12.750 ($14.6625) |
| 20+ | $11.460 ($13.179) |
| 50+ | $10.190 ($11.7185) |
Price for:Each
Minimum: 1
Multiple: 1
$16.37 ($18.83 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | S286B-1Copy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 1735374 |
| Technical Datasheet | |
| Switch Operation | Off-On |
| Contact Configuration | SPDT |
| Product Range | - |
| No. of Switch Positions | 2 Position |
| Switch Terminals | - |
| Contact Current Max | 4A |
| Contact Voltage AC Nom | 125V |
| Contact Voltage DC Nom | - |
| Angle of Throw | 90° |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

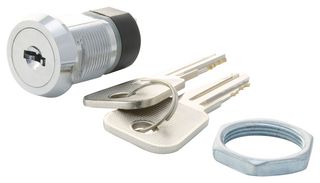

The S286B-1 is a SPDT 2-position Keylock Switch with chrome-plated zinc alloy die cast housing and nickel-plated brass reversible double cut key. This one key pull switch has silver-plated contacts and terminals.
- 5-disk Tumblers mechanism
- 10mΩ Maximum contact resistance
- 500MΩ Insulation resistance (500VDC)
- 1500VAC at 1 minute Dielectric strength
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial
Technical Specifications
| Switch Operation | Off-On |
|---|---|
| Product Range | - |
| Switch Terminals | - |
| Contact Voltage AC Nom | 125V |
| Angle of Throw | 90° |
| Contact Configuration | SPDT |
|---|---|
| No. of Switch Positions | 2 Position |
| Contact Current Max | 4A |
| Contact Voltage DC Nom | - |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (1)
Alternatives for S286B-1
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .052 |
