ST510A
Schottky Rectifier, 100 V, 5 A, Single, DO-214AC (SMA), 2 Pins, 650 mV

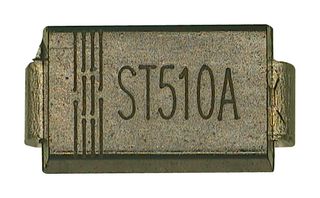

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoST510A
Order Code
Re-Reel4132164RL
Cut Tape4132164
Product RangeMulticomp Pro Schottky Barrier Rectifiers
Your Part Number
13,332 total stock globally
Need more?
13332 Delivery in 3-5 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 5 | $1.560 | $7.80 |
Cut Tape & Re-Reel
| Quantity | Price (Incl GST) |
|---|---|
| 5+ | $1.560 ($1.794) |
| 10+ | $1.040 ($1.196) |
| 100+ | $0.790 ($0.9085) |
| 500+ | $0.645 ($0.7418) |
| 1000+ | $0.580 ($0.667) |
| 5000+ | $0.526 ($0.6049) |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoST510A
Order Code
Re-Reel4132164RL
Cut Tape4132164
Product RangeMulticomp Pro Schottky Barrier Rectifiers
Technical Datasheet
Repetitive Peak Reverse Voltage100V
Average Forward Current5A
Diode ConfigurationSingle
Diode Case StyleDO-214AC (SMA)
No. of Pins2Pins
Forward Voltage Max650mV
Forward Surge Current120A
Operating Temperature Max150°C
Diode MountingSMD
Product RangeMulticomp Pro Schottky Barrier Rectifiers
Qualification-
SVHCNo SVHC (25-Jun-2025)
Product Overview
In applications where higher ambient temperatures will be experienced such as automotive, Trench Schottky rectifiers is a suitable choice since they are more robust against thermal runaway.
- The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
- For surface mounted applications
- Built-in strain relief, ideal for automated placement
- Low forward voltage
- High forward surge current capability
- High temperature soldering guaranteed 250°C/10 seconds at terminals
Applications
Electronics Design, Power Supplies, Automotive, Computers & Computer Peripherals, DC/DC Converters, Industrial, Portable Devices, Robotics
Technical Specifications
Repetitive Peak Reverse Voltage
100V
Diode Configuration
Single
No. of Pins
2Pins
Forward Surge Current
120A
Diode Mounting
SMD
Qualification
-
Average Forward Current
5A
Diode Case Style
DO-214AC (SMA)
Forward Voltage Max
650mV
Operating Temperature Max
150°C
Product Range
Multicomp Pro Schottky Barrier Rectifiers
SVHC
No SVHC (25-Jun-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85411000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000082
