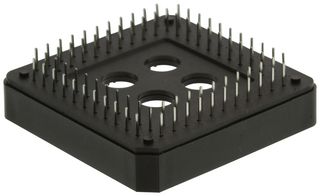

MC-84PLCC
IC & Component Socket, 84 Contacts, PLCC Socket, 2.54 mm, Phosphor Bronze
Image is for illustrative purposes only. Please refer to product description.
382 total stock globally
Need more?
382 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $4.560 ($5.244) |
| 10+ | $3.390 ($3.8985) |
| 25+ | $2.950 ($3.3925) |
| 100+ | $2.490 ($2.8635) |
| 150+ | $2.220 ($2.553) |
Price for:Each
Minimum: 1
Multiple: 1
$4.56 ($5.24 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMULTICOMP
Manufacturer Part NoMC-84PLCC
Order Code2097218
Technical Datasheet
No. of Contacts84Contacts
Connector TypePLCC Socket
Pitch Spacing2.54mm
Product Range-
Row Pitch-
Contact MaterialPhosphor Bronze
Contact PlatingTin Plated Contacts
SVHCNo SVHC (21-Jan-2025)
Product Overview
The MC-84PLCC is a 84-pin through hole PLCC Socket with brown PBT/glass reinforced insulator, phosphor bronze contacts and tin over copper underplate overall plating.
- 30mΩ Contact resistance
- 1000MΩ Insulation resistance
- 250VAC Operating voltage
- 1A Current rating
- 500VAC/minute Dielectric withstanding voltage
- -55 to +105°C Operating temperature
- 235°C for 5s Recommended soldering temperature
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial
Technical Specifications
No. of Contacts
84Contacts
Pitch Spacing
2.54mm
Row Pitch
-
Contact Plating
Tin Plated Contacts
Connector Type
PLCC Socket
Product Range
-
Contact Material
Phosphor Bronze
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Alternatives for MC-84PLCC
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004536
