MP5360M

RF MODULE, TXRX, NANOPAN 5360, CSS

NANOTRON TECHNOLOGIES MP5360M
×

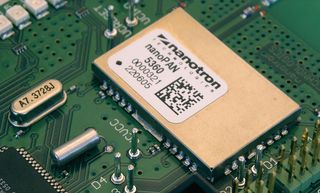

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
MP5360M
Order Code:
1382197
Technical Datasheet:
MP5360M   Datasheet
See all Technical Docs

Product Overview

The MP5360M is a nanoPAN 5360 RF Module based on Nanotron's patented chirp spread spectrum (CSS) transmission technology and provides a long range of up to 900m in free space and typically 60m indoors (at 1Mbps and 8dBm output power). The network is extremely robust against disturbances such as noise and multipath fading. Due to its primarily analogue signal processing and the robustness of the chirp signal, nanoNET has extremely low power consumption per successfully transmitted bit. It contains the complete RF part of a nanoNET network node and provides an asymmetrical 50-ohm antenna port. The data rate is selectable between 500kbps, 1Mbps and 2Mbps.
  • Operating worldwide in the 2.45GHz ISM band
  • 64MHz Effective chirp bandwidth
  • SPI interface to external µc (up to 16MHz SPI clock)
  • 2.4 to 3.6V Supply voltage
  • 35mA (RX) Current consumption
  • 78mA (TX) Maximum output power
  • TX Power adjustment in 19 steps
  • -40 to +85°C Operating temperature
  • 4 Channel digital I/O
  • Small metal housing
  • 6dBm Maximum output power
  • ISM band pass filter for maximum robustness
  • High speed, low power module

Applications

Communications & Networking, RF Communications
