NJ3FC6
Phone Audio Connector, Locking, 1 Contacts, Socket, 6.35 mm, Cable Mount, Silver Plated Contacts

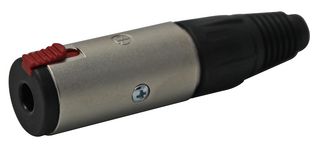

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNEUTRIK
Manufacturer Part NoNJ3FC6
Order Code212179
Also Known AsGTIN UPC EAN: 5055177108733
Available to Order
Manufacturer Standard Lead Time: 8 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $18.730 ($21.5395) |
| 25+ | $18.470 ($21.2405) |
| 125+ | $16.630 ($19.1245) |
Price for:Each
Minimum: 1
Multiple: 1
$18.73 ($21.54 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
Product Overview
The NJ3FC6 is a 3-contact professional locking 1/4-inch Cable Jack for secure in-line connections. It has nickel housing, silver-plated brass contacts and excellent cable protection. It provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.
- Metal shell makes it extremely robust and reliable
- Neutrik cable retention and boot as on XLR connectors
- Solder terminals
- <lt/>6mΩ Initial contact resistance
- 1kVDC Dielectric strength
- ≥1GΩ at 500Vdc Insulation resistance
Applications
Audio
Technical Specifications
No. of Contacts
1Contacts
Pin Diameter
6.35mm
Contact Plating
Silver Plated Contacts
Product Range
-
Gender
Socket
Connector Mounting
Cable Mount
Connector Body Material
Metal Body
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.034
