NEX10001UBZ
Power Supply IC, LCD Bias, 2.7V to 5V Supply, 220mA, -40 °C to 85 °C, WLCSP-15

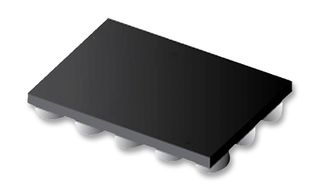

Image is for illustrative purposes only. Please refer to product description.
Packaging Options
2,900 total stock globally
Need more?
2900 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 100+ | $0.465 ($0.5347) |
| 500+ | $0.413 ($0.475) |
| 1000+ | $0.395 ($0.4542) |
| 2500+ | $0.388 ($0.4462) |
Price for:Each (Supplied on Cut Tape)
Minimum: 100
Multiple: 5
$46.50 ($53.47 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Overview
NEX10001UBZ is a 220mA dual output LCD bias power supply. It is a power supply IC providing programmable positive and negative output voltages for TFT-LCD panels. The device features an integrated boost converter, LDO regulator and a negative charge pump. The device requires only a single inductor allowing for a small Bill-Of-Material and the smallest PCB area. The NEX10001 has an input voltage range of 2.7V to 5V and can operate from single-cell Li-ion, Ni-Li and Li-Polymer batteries It can supply up to 220mA output current. The NEX10001 has excellent line transient and load transient responses. Applications include smart phone TFT-LCD, tablet TFT-LCD.
- Input voltage range from 2.7 to 5.0V (supply voltage pin VIN)
- Programmable output voltages - OUTP: +4V to +6V (0.1V step), OUTN: -4V to -6V (0.1V step)
- Output current is 220mA max
- 85% high efficiency at 80mA combined output, ±1% output voltage accuracy
- Excellent transient response
- I²C interface - flexible output voltage programming
- Integrated active output discharge function, UVLO and OTSD protection
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000V
- CDM: ANSI/ESDA/JEDEC JS-002 class C2a exceeds 500V
- 15 lead WLCSP package, ambient temperature range from -40°C to +85°C
Technical Specifications
IC Function
LCD Bias Supply
Supply Voltage Max
5V
Operating Temperature Min
-40°C
Supply Voltage Min
2.7V
No. of Pins
15Pins
Operating Temperature Max
85°C
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85423990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000017
