PCMF3HDMI2SZ

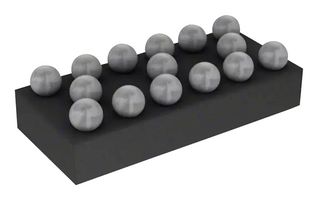

EMI Filter, 3 Channels, WLCSP-15
| Manufacturer | NEXPERIA |
|---|---|
| Manufacturer Part No | PCMF3HDMI2SZCopy |
| Manufacturer Standard Lead Time | 54 weeks |
| Order Code | Re-Reel2627937RL Cut Tape2627937 |
| Product Range | PCMFxHDMI2S Series |
| Also Known As | PCMF3HDMI2SZ |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | $4.030 | $4.03 |
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $4.030 ($4.6345) |
| 10+ | $2.490 ($2.8635) |
| 25+ | $2.210 ($2.5415) |
| 50+ | $1.930 ($2.2195) |
| 100+ | $1.630 ($1.8745) |
| 500+ | $1.290 ($1.4835) |
Product Information
| Manufacturer | NEXPERIA |
|---|---|
| Manufacturer Part No | PCMF3HDMI2SZCopy |
| Manufacturer Standard Lead Time | 54 weeks |
| Order Code | Re-Reel2627937RL Cut Tape2627937 |
| Product Range | PCMFxHDMI2S Series |
| Also Known As | PCMF3HDMI2SZ |
| Technical Datasheet | |
| EMI Filter Type | Common Mode Filter with ESD Protection |
| No. of Data Lines | 6 Data Lines |
| Filter Circuit | Common-Mode |
| Filter Case / Package | WLCSP |
| No. of Pins | 15Pins |
| Product Range | PCMFxHDMI2S Series |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
The PCMF3HDMI2S is a common mode EMI filter for differential channels with integrated ESD protection in 15 pin WLCSP package. The device is designed to provide low insertion loss for differential high speed signals on each channel while unwanted common mode signals are attenuated. It is used in Smartphone, cellular and cordless phone, tablet PC and mobile internet device (MID), HDMI 2.0, HDMI 1.4, MIPI M-PHY and D-PHY as used in camera serial interface (CSI) and display serial interface (DSI) and general purpose EMI and radio-frequency interference (RFI) filter and downstream ESD protection.
- Three differential channel common mode EMI filters with integrated ESD protection
- ESD protection up to ±15KV contact discharge according to IEC 61000-4-2
- Superior common mode suppression over a wide frequency range
- Superior RF performance compared to other integrated/discrete filters with external ESD protection
- Extremely high symmetry between line pairs
Applications
Signal Processing, Safety, Consumer Electronics, Portable Devices
Technical Specifications
| EMI Filter Type | Common Mode Filter with ESD Protection |
|---|---|
| Filter Circuit | Common-Mode |
| No. of Pins | 15Pins |
| SVHC | No SVHC (25-Jun-2025) |
| No. of Data Lines | 6 Data Lines |
|---|---|
| Filter Case / Package | WLCSP |
| Product Range | PCMFxHDMI2S Series |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Netherlands Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85363010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
