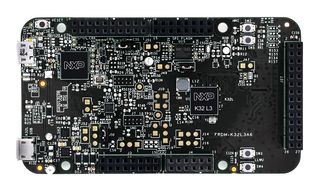

FRDM-K32L3A6
Freedom Development Board, K32L3A60VPJ1A, 32bit, ARM Cortex-M0+, Cortex-M4, USB Cable
Image is for illustrative purposes only. Please refer to product description.
13 total stock globally
Need more?
13 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $78.390 ($90.1485) |
Price for:Each
Minimum: 1
Multiple: 1
$78.39 ($90.15 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNXP
Manufacturer Part NoFRDM-K32L3A6
Order Code3254814
Technical Datasheet
Silicon ManufacturerNXP
No. of Bits32bit
Silicon Family NameK32 L3
Core ArchitectureARM
Core Sub-ArchitectureCortex-M0+, Cortex-M4
Silicon Core NumberK32L3A60VPJ1A
Kit ContentsFreedom Development Board K32L3A60VPJ1A, USB Cable
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
FRDM-K32L3A6 is a freedom development platform for K32 L3 MCUs. This development board consists of the K32L3A6 device with a 32-Mbit external serial flash, FXOS8700 accelerometer/magnetometer, visible light sensor, SDHC circuit, general purpose LEDs, and general purpose push buttons in the popular Freedom board form-factor.
- Full-speed USB module with device capability and built-in transceiver
- SDHC card slot supported
- 4MB serial flash memory with SPI interface
- Six-axis accelerometer with integrated magnetometer
- Phototransistor connected to the ADC input channel for evaluating the ADC
- One RGB LED and one red LED controlled by GPIO
- Four selectable power sources including USB connector
- DC-DC converter with Buck and Bypass operation modes
- Jumpers and trace cuts enable accurate core current measurements
Contents
One FRDM-K32L3A6 development board, One USB cable.
Technical Specifications
Silicon Manufacturer
NXP
Silicon Family Name
K32 L3
Core Sub-Architecture
Cortex-M0+, Cortex-M4
Kit Contents
Freedom Development Board K32L3A60VPJ1A, USB Cable
SVHC
No SVHC (27-Jun-2024)
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
K32L3A60VPJ1A
Product Range
-
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:5A992.c
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.2
