FRDM-KL25Z
Development Board, Kinetis KL14, KL15, KL24, KL25 MCU's, Capacitive Touch Slider, Accelerometer
- Manufacturer:
- NXP NXP
- Manufacturer Part No:
- FRDM-KL25Z
- Order Code:
- 2191861
- Technical Datasheet:
- FRDM-KL25Z Datasheet
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- NXP
- :
- 32bit
- :
- Kinetis - KL2
- :
- ARM
- :
- Cortex-M0+
- :
- MKL2
- :
- Freedom Development Board
- :
- -
Technical Docs (4)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Product Overview

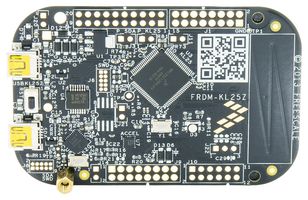

The FRDM-KL25Z is an ultra low cost development platform enabled by Kinetis L Series KL1x and KL2x MCUs families built on ARM Cortex-M0+ processor. It features a KL25Z128VLK, a KL2 family device boasting a max operating frequency of 48MHz, 128KB of flash, a full speed USB controller, and loads of analogue and digital peripherals. The FRDM-KL25Z hardware is form factor compatible with the Arduino R3 pin layout, providing a broad range of expansion board options. The on board interfaces include an RGB LED, a 3-axis digital accelerometer, and a capacitive touch slider. The development platform is supported by a range of NXP and third party development software. The FRDM-KL25Z is the first hardware platform to feature the NXP open standard embedded serial and debug adapter known as OpenSDA. This circuit offers several options for serial communications, flash programming and run control debugging.
- MMA8451Q accelerometer, tri colour LED
- Easy access to MCU I/O
- Sophisticated OpenSDA debug interface
- Mass storage device flash programming interface (default)
- P&E Multilink interface provides run-control debugging and compatibility with IDE tools
- Programmable OpenSDA debug interface with multiple applications
- Battery ready, power measurement access points
- Flexible power supply options USB, coin cell battery, external source
Applications
Consumer Electronics, Industrial, Medical
