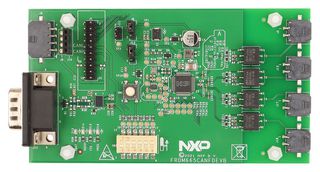

NXP FRDM665CANFDEVB

Evaluation Kit, MC33665A, Interface, CAN-FD Transceiver

NXP FRDM665CANFDEVB
NXP FRDM665CANFDEVB
NXP FRDM665CANFDEVB
NXP FRDM665CANFDEVB
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
NXP NXP
Manufacturer Part No:
FRDM665CANFDEVB
Order Code:
4062202
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
FRDM665CANFDEVB   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Overview

FRDM665CANFDEVB is an evaluation board for MC33665A with CAN FD Gateway and TPL communication. It serves as a hardware evaluation tool in support of the MC33665A BMS from NXP. The MC33665A is a gateway router that can route TPL messages from the microcontroller (MCU) to four different TPL ports. It is designed for use in both automotive and industrial applications. The device can route both TPL2 and TPL3 messages. The FRDM665CANFDEVB is an ideal board for rapid prototyping of the MC33665A for CAN or CAN FD interface to MCUs. Onboard TPL interface for four TPL ports has transformer isolation. Typical applications include battery management system (BMS).
  • TPL communication (2Mbit/s) and 20 pin connector for GPIO and I2C interface
  • LED indicator: VBAT, VDD5V, VREG and VIO
  • DIP switch to configure CFG and ID pin, jumpers to configure VDDIO, reset switch to control MC33665A
  • CAN or CAN FD to 4 x TPL communication and 8 GPIO pins (2 pins configurable for I2C) (MC33665A)
  • High-speed CAN FD transceiver up to 5Mbit/s
  • Compliant to ISO 11898-2:2016, SAE J2284-1 to -5 and SAE J1939-14

Product Information


Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

1 total stock globally Need more?

1 UK stock available for 5-8 business days delivery

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

$506.39 ( $582.35  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
  • 1+
Quantity Price (Incl GST) Your Price (Incl GST)


1+ $506.39 ($582.35)
