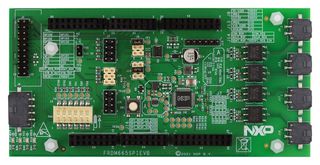

NXP FRDM665SPIEVB

Evaluation Kit, MC33665A, Interface, Physical Layer Transceiver

NXP FRDM665SPIEVB
NXP FRDM665SPIEVB
NXP FRDM665SPIEVB
NXP FRDM665SPIEVB
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
NXP NXP
Manufacturer Part No:
FRDM665SPIEVB
Order Code:
4062203
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
FRDM665SPIEVB   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Overview

FRDM665SPIEVB serves as a hardware evaluation tool in support of the MC33665A device (SPI variant) from NXP. The MC33665A is a gateway router that can route TPL messages from the microcontroller (MCU) to four different TPL ports. It is designed for use in both automotive and industrial applications. The device can route both TPL2 and TPL3 messages. The FRDM665SPIEVB is an ideal board for rapid prototyping of the MC33665A for SPI interface to a MCU. On-board TPL interface for four TPL ports has transformer isolation.
  • MC33665A general purpose BMS communication TPL transceiver and CAN FD gateway
  • SPI communication (10Mbit/s of data)
  • TPL communication (2Mbit/s)
  • 20 pin connector for GPIO and I2C interface
  • Connectors to interface with S32K344 EVB
  • DIP switch to configure CFG and ID pins
  • Jumpers to configure VDDIO
  • Reset switch to control MC33665A
  • SPI to 4 x TPL communication
  • 8 GPIO pins (2 pins configurable for I2C)

Contents

FRDM665SPIEVB, TPL Cable 50 cm, Power Cable.
