KWIKSTIK-K40

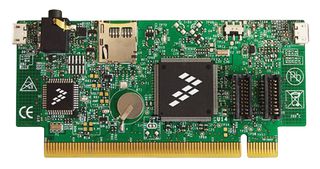

KWIKSTIK-K40 is a Kwikstick evaluation board. It is an ultra-low-cost, all-in-one development tool for evaluating, developing and debugging Kinetis® MCUs, the KWIKSTIK-K40 features the K40X256VLQ100 (144LQFP) MCU with USB, touch-sensing and segment LCD functionality. It comes pre-flashed with demo software to exercise a small portion of the capabilities of the Kinetis K40X256 device and the KwikStik hardware. The on-board Segger™ J-Link™ debug interface allows you to evaluate the features of the on-board K40 MCU or to develop, debug and program your own target hardware based on any Kinetis MCU. The KWIKSTIK-K40 can be combined and used with several peripheral modules in the Tower® System; it can also be operated as a standalone debug tool.

• K40X256 in 144 LQFP (256kB flash, 256kB FlexMemory, ultra-low-power, precision mixed-signal)
• LCD display with 306 segments
• 3.5mm audio output jack and two micro USB connectors
• Omni-directional microphone and a buzzer
• On-board J-Link USB programmer, infrared communications
• Micro SD card slot, capacitive touch-sensing interface
• General-purpose Tower® plug-in (TWRPI) socket
• Manganese lithium rechargeable battery

Contents

KwikStik board with a K40X256VLQ100 (144LQFP) 32bit MCU, Flexible plastic enclosure, Necessary cables, DVD with software installers and documentation, Quick start guide.
