F3105
RTD Sensor, Component with Leads, -50 °C, 600 °C, 100 ohm, Platinum

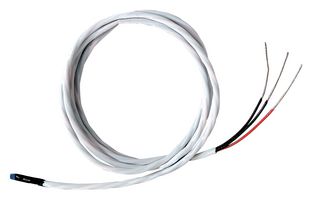

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMEGA
Manufacturer Part NoF3105Copy
Manufacturer Standard Lead Time42 weeks
Order Code3795153
Product RangeOMEGAFILM F Series
Your Part Number
8 total stock globally
Need more?
8 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $78.430 ($90.1945) |
Price for:Each
Minimum: 1
Multiple: 1
$78.43 ($90.19 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerOMEGA
Manufacturer Part NoF3105Copy
Manufacturer Standard Lead Time42 weeks
Order Code3795153
Product RangeOMEGAFILM F Series
Technical Datasheet
Sensing Temperature Min-50°C
RTD TypeComponent with Leads
Sensing Temperature Max600°C
RTD Accuracy-
Measured Temperature Min-50°C
Resistance100ohm
Measured Temperature Max600°C
Resistance @ 0°C100ohm
RTD Element MaterialPlatinum
Probe Material-
Probe Diameter-
Probe Length-
Cable Length - Metric10mm
Cable Length - Imperial0.4"
Cable TerminationWire Leaded
Wire Configuration2-Wire
Product RangeOMEGAFILM F Series
SVHCNo SVHC (04-Feb-2026)
Product Overview
F3105 is an F series thin film platinum RTD element. An element achieved by employing construction techniques similar to those used to manufacture miniature electronic integrated circuits. All this in a rugged, accurate, ceramic encased package. Its resistance vs. temperature characteristics conform to IEC60751, and this has a temperature coefficient of resistance between 0 and 100ºC of 0.00385 ohm/ohm/ºC. This thin film RTD can be used as is with various OMEGATM controllers and instruments, or in an unlimited number of housings and package styles to meet user needs.
- DIN class A accuracy
- Nominal resistance is 100 ohm
- Maximum temperature range from -50 to 500°C
- 10mm lead length
Technical Specifications
Sensing Temperature Min
-50°C
Sensing Temperature Max
600°C
Measured Temperature Min
-50°C
Measured Temperature Max
600°C
RTD Element Material
Platinum
Probe Diameter
-
Cable Length - Metric
10mm
Cable Termination
Wire Leaded
Product Range
OMEGAFILM F Series
RTD Type
Component with Leads
RTD Accuracy
-
Resistance
100ohm
Resistance @ 0°C
100ohm
Probe Material
-
Probe Length
-
Cable Length - Imperial
0.4"
Wire Configuration
2-Wire
SVHC
No SVHC (04-Feb-2026)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85332100
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000363
