LC8200-500-10K
Load Cell, 2 mV / V, 10000 lb, 10 VDC, LC8200 Series

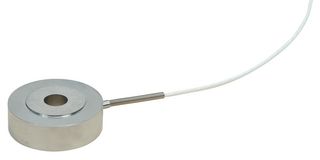

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMEGA
Manufacturer Part NoLC8200-500-10K
Order Code3795008
Product RangeLC8200 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 13 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $1,613.230 ($1,855.2145) |
Price for:Each
Minimum: 1
Multiple: 1
$1,613.23 ($1,855.21 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerOMEGA
Manufacturer Part NoLC8200-500-10K
Order Code3795008
Product RangeLC8200 Series
Technical Datasheet
Load Capacity10000lb
Load Cell TypeCompact Compression
Supply Voltage10VDC
Weight Capacity10000lbf
Excitation Voltage Min10VDC
Excitation Voltage Max15VDC
Cell Output mV / V2
Sensor Output TypeRatiometric
Connection TypeCable
Linearity± 0.5%
Cable Length - Metric1.5m
Cable Length - Imperial4.9ft
Operating Temperature Min-54°C
Operating Temperature Max121°C
Product RangeLC8200 Series
SVHCNo SVHC (17-Jan-2022)
Product Overview
- LC8200 series is a through-hole bolt load cell
- 5 point NIST traceable calibration with 59Kohm shunt cal data
- Low profile
- All stainless steel construction
- Rugged industrial design
- 50.8mm Od, 12.7mm ID, 0-10000lb capacity
- 2mV/V nominal output
- Operating temperature range from -54 to 121°C
- 1.5m 4-conductor shielded cable
- 150% of capacity safe overload
Technical Specifications
Load Capacity
10000lb
Supply Voltage
10VDC
Excitation Voltage Min
10VDC
Cell Output mV / V
2
Connection Type
Cable
Cable Length - Metric
1.5m
Operating Temperature Min
-54°C
Product Range
LC8200 Series
Load Cell Type
Compact Compression
Weight Capacity
10000lbf
Excitation Voltage Max
15VDC
Sensor Output Type
Ratiometric
Linearity
± 0.5%
Cable Length - Imperial
4.9ft
Operating Temperature Max
121°C
SVHC
No SVHC (17-Jan-2022)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:90160090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (17-Jan-2022)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.19958
